Introduction
In this section, two machine learning models will be used to classify the vivo_ano5 column, Random Forest and XGBoost, for both datasets, São Paulo and other states.
The label is 1 if the patient is alive after five years of treatment and 0 if not.
The first approach is using the “raw data”, the second is without the EC column, the third one is without EC and HORMONIO, the fourth is using the grouped years and without the column EC and the fifth is also with the years gruped and without EC and HORMONIO.
The years will be grouped as follows: 2000 to 2003, 2004 to 2007, 2008 to 2011, 2012 to 2015 and 2016 until the end. So we will have 5 datasets for SP and another 5 for other states.
Reading the data from SP and other states.
We can see that we still have some missing values in both datasets, but the columns DTRECIDIVA, delta_t4, delta_t5 and delta_t6 will not be used in this approach.
[ ]:
df_SP = read_csv('/content/drive/MyDrive/Trabalho/Cancer/Datasets/geral_sp_labels.csv')
df_fora = read_csv('/content/drive/MyDrive/Trabalho/Cancer/Datasets/geral_fora_sp_labels.csv')
(506037, 77)
(32891, 77)
Here we have the correlations between the label and the other columns, the columns with higher correlations will not be used as features of the models, because they may have been used to create the label, such as the ULTINFO column, or they can be used as label for other machine learning models.
[ ]:
# SP
corr_matrix = df_SP.corr()
abs(corr_matrix['vivo_ano5']).sort_values(ascending = False).head(20)
vivo_ano5 1.000000
ULTIDIAG 0.829202
ULTITRAT 0.824152
ULTICONS 0.823421
vivo_ano3 0.688613
vivo_ano1 0.379191
obito_cancer 0.332117
ANODIAG 0.324126
obito_geral 0.294475
HORMONIO 0.198900
CATEATEND 0.177011
CIRURGIA 0.166085
MORFO 0.150870
ULTINFO 0.145083
G 0.118027
QUIMIO 0.098815
PSA 0.093765
GLEASON 0.092859
REGISTRADO 0.089388
CLINICA 0.072913
Name: vivo_ano5, dtype: float64
[ ]:
# Other states
corr_matrix = df_fora.corr()
abs(corr_matrix['vivo_ano5']).sort_values(ascending = False).head(20)
vivo_ano5 1.000000
ULTIDIAG 0.818812
ULTICONS 0.816039
ULTITRAT 0.814230
vivo_ano3 0.667262
ANODIAG 0.378213
vivo_ano1 0.365313
obito_cancer 0.314455
obito_geral 0.301465
CATEATEND 0.271218
CIRURGIA 0.182209
HORMONIO 0.173752
ULTINFO 0.169878
REGISTRADO 0.149369
MORFO 0.132414
GLEASON 0.119970
PSA 0.118843
QUIMIO 0.089366
TRATCONS 0.083623
RADIO 0.064680
Name: vivo_ano5, dtype: float64
Here we have the number of examples for each category of the label, it is clear that there is an imbalance, similar to the previous classification.
[ ]:
df_SP.vivo_ano5.value_counts()
0 350104
1 155933
Name: vivo_ano5, dtype: int64
[ ]:
df_fora.vivo_ano5.value_counts()
0 23443
1 9448
Name: vivo_ano5, dtype: int64
Years of diagnosis present in the data.
[ ]:
np.sort(df_SP.ANODIAG.unique())
array([2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010,
2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021])
[ ]:
np.sort(df_fora.ANODIAG.unique())
array([2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010,
2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020])
Before dividing the datasets, it is necessary to select only the patients who have been followed up for at least five years.
[ ]:
df_SP_ano5 = df_SP[~((df_SP.obito_geral == 0) & (df_SP.vivo_ano5 == 0))]
df_SP_ano5.shape
(348678, 77)
[ ]:
df_fora_ano5 = df_fora[~((df_fora.obito_geral == 0) & (df_fora.vivo_ano5 == 0))]
df_fora_ano5.shape
(20559, 77)
First approach
Approach with “raw data”.
Preprocessing
Now we are going to divide the data into training and testing, and then do the preprocessing in both datasets to perform the training of the models and their evaluation.
First, it is necessary to define the columns that will be used as features and the label. We will not use some columns of the datasets: UFRESID, because we already have the division between SP and other states in the two datasets.
It was chosen to keep the column IDADE, so we will not use the FAIXAETAR. Finally, the other columns contained in the list list_drop are possible labels, so they will not be used as features for machine learning models.
[ ]:
list_drop = ['UFRESID', 'FAIXAETAR', 'ULTICONS', 'ULTIDIAG', 'ULTITRAT',
'obito_geral', 'obito_cancer', 'vivo_ano1', 'vivo_ano3', 'ULTINFO']
# 'RECNENHUM', 'RECLOCAL', 'RECREGIO', 'REC01', 'REC02', 'REC03', 'RECDIST'
lb = 'vivo_ano5'
A function was created to perform the preprocessing, preprocessing, that uses the other functions created, get_train_test (divides the dataset into train and test sets), train_preprocessing (do the preprocessing of the train set) and test_preprocessing (do the preprocessing of the test set).
To see the complete function go to the functions section.
SP
[ ]:
X_train_SP, X_test_SP, y_train_SP, y_test_SP, feat_cols_SP = preprocessing(df_SP_ano5, list_drop, lb,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (261508, 66), X_test = (87170, 66)
y_train = (261508,), y_test = (87170,)
Other states
[ ]:
X_train_OS, X_test_OS, y_train_OS, y_test_OS, feat_cols_OS = preprocessing(df_fora_ano5, list_drop, lb,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (15419, 66), X_test = (5140, 66)
y_train = (15419,), y_test = (5140,)
Training machine learning models
After dividing the data into training and testing, using the encoder and normalizing, the data is ready to be used by the machine learning models.
Random Forest
The first model that will be tested is the Random Forest, for this test the parameter random_state will be used, to obtain the same training values of the model every time it is runned.
The hyperparameter class_weight was also used, because the model has difficulty learning the class with fewer examples, so using this parameter this class will have a higher weight in the training of the model.
[ ]:
# SP
rf_sp = RandomForestClassifier(class_weight={0:1, 1:1.06},
random_state=seed,
criterion='entropy',
max_depth=10)
rf_sp.fit(X_train_SP, y_train_SP)
RandomForestClassifier(class_weight={0: 1, 1: 1.06}, criterion='entropy',
max_depth=10, random_state=10)
[ ]:
display_confusion_matrix(rf_sp, X_test_SP, y_test_SP)
precision recall f1-score support
0 0.843 0.813 0.828 48187
1 0.779 0.813 0.796 38983
accuracy 0.813 87170
macro avg 0.811 0.813 0.812 87170
weighted avg 0.814 0.813 0.814 87170
The confusion matrix obtained for the Random Forest, with SP data, shows a good performance of the model, with 81% of accuracy.
[ ]:

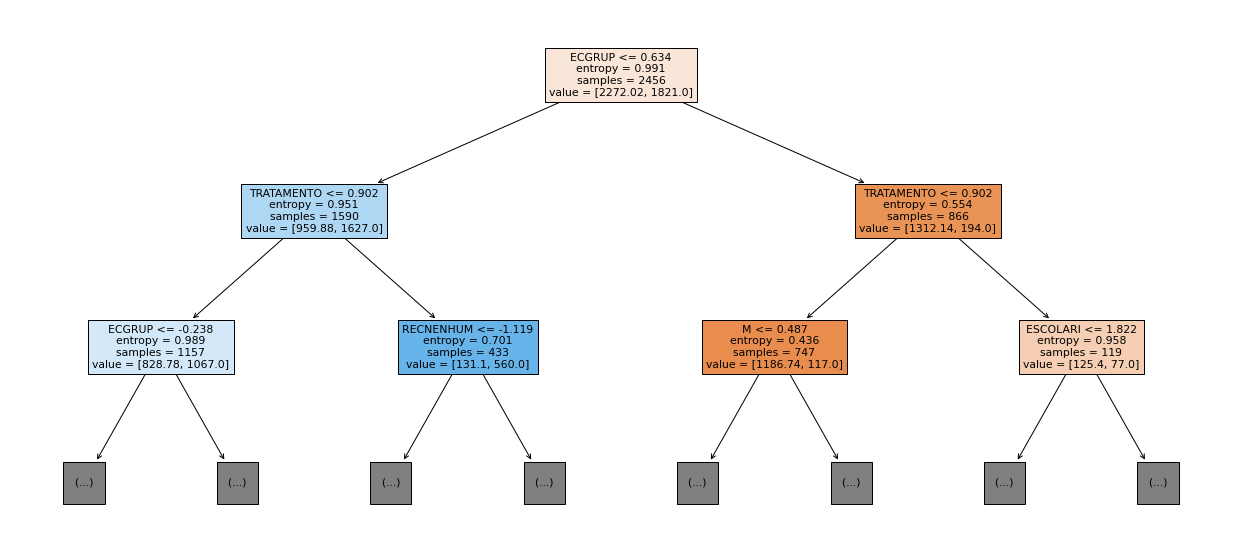

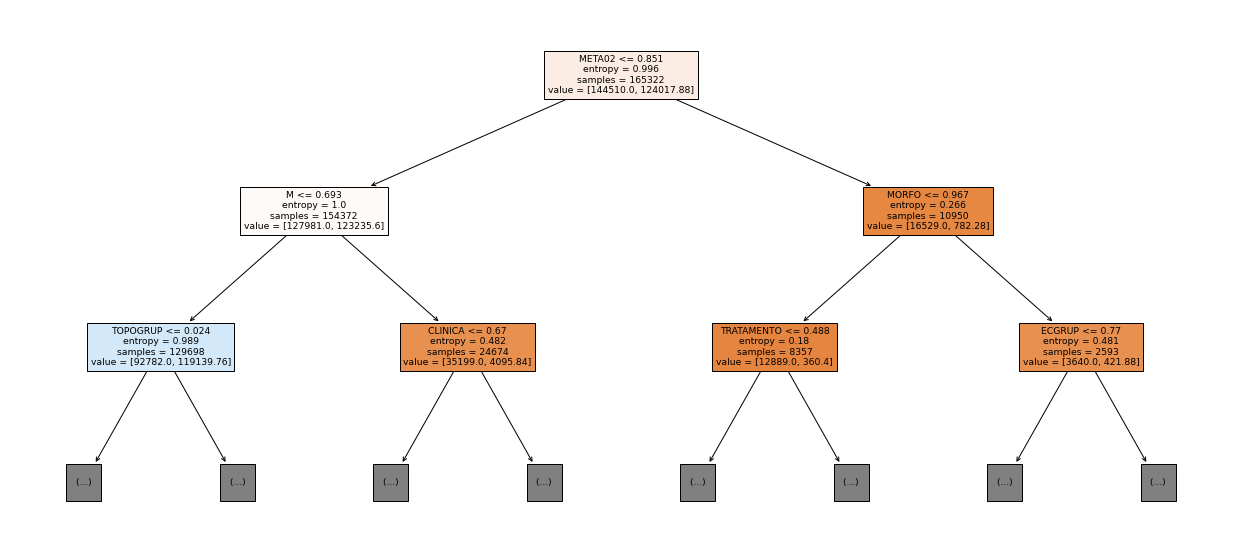

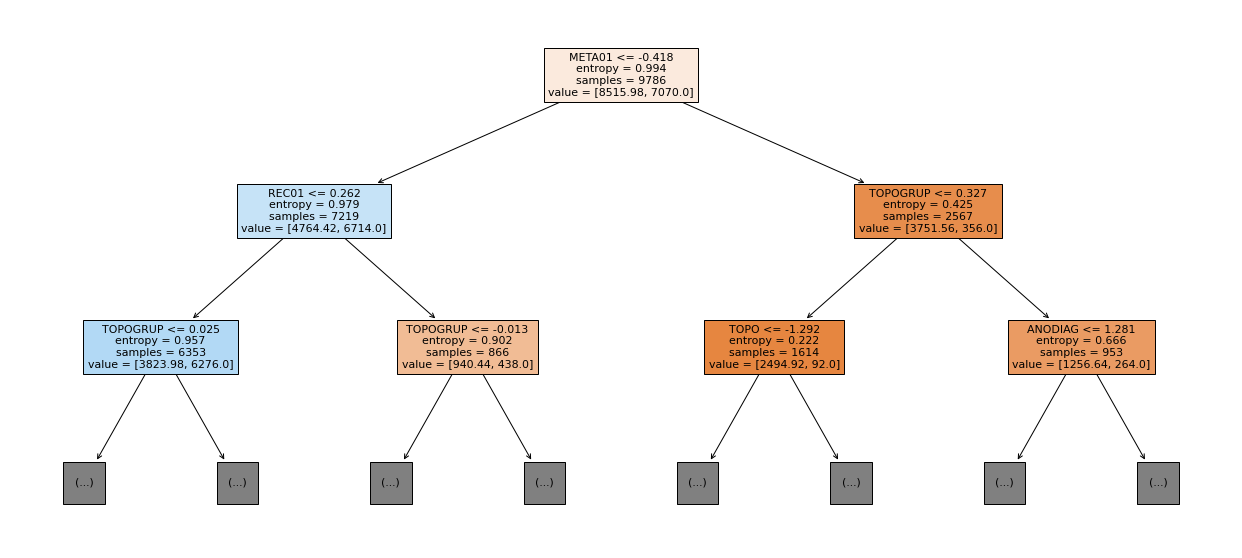

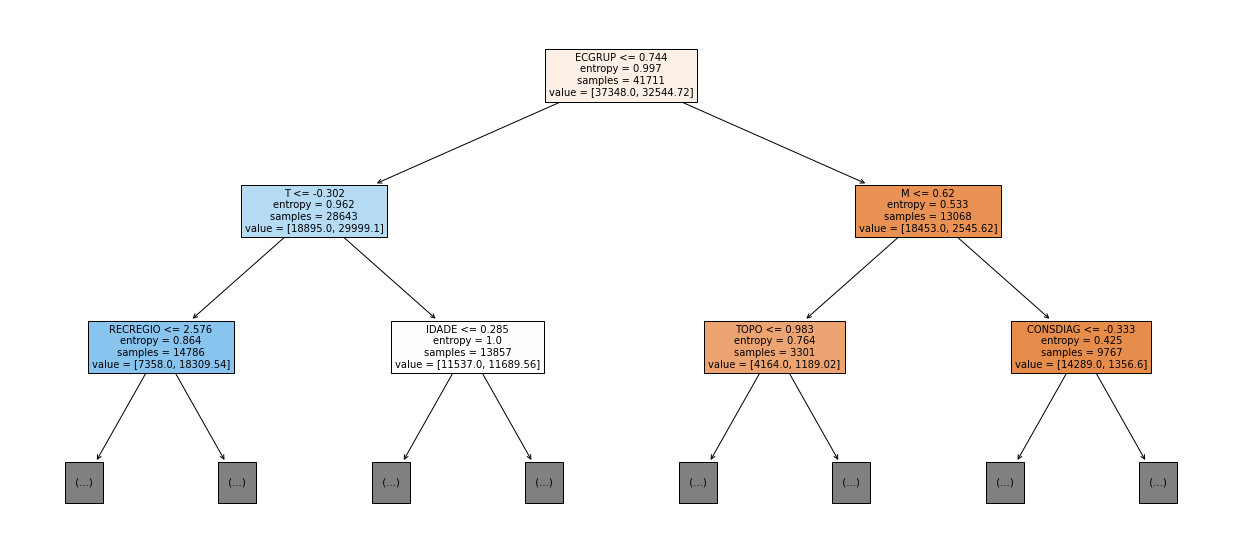

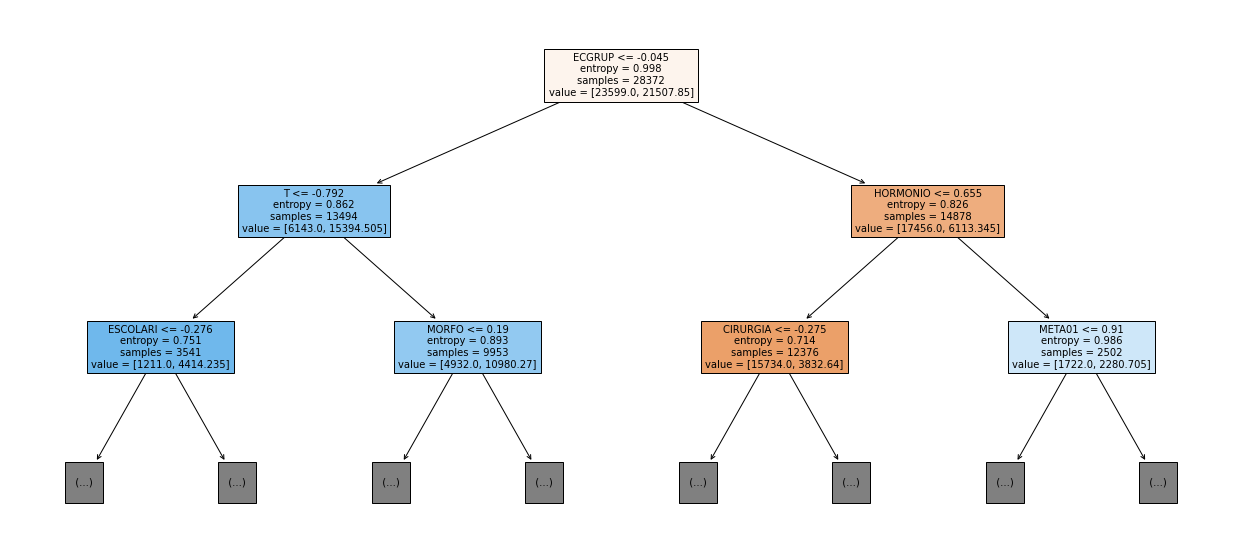

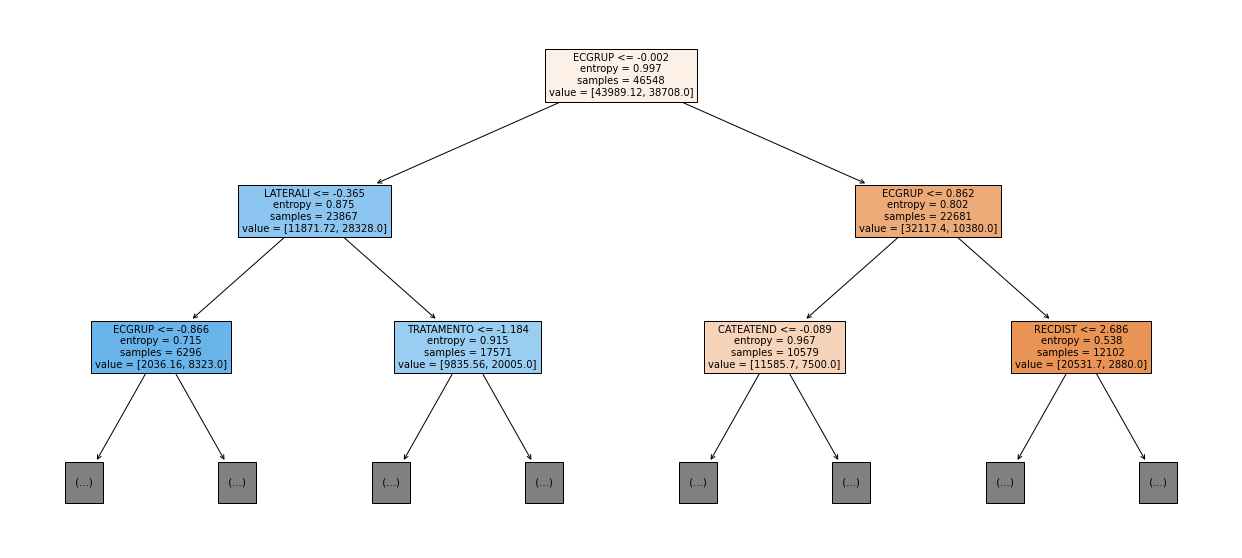

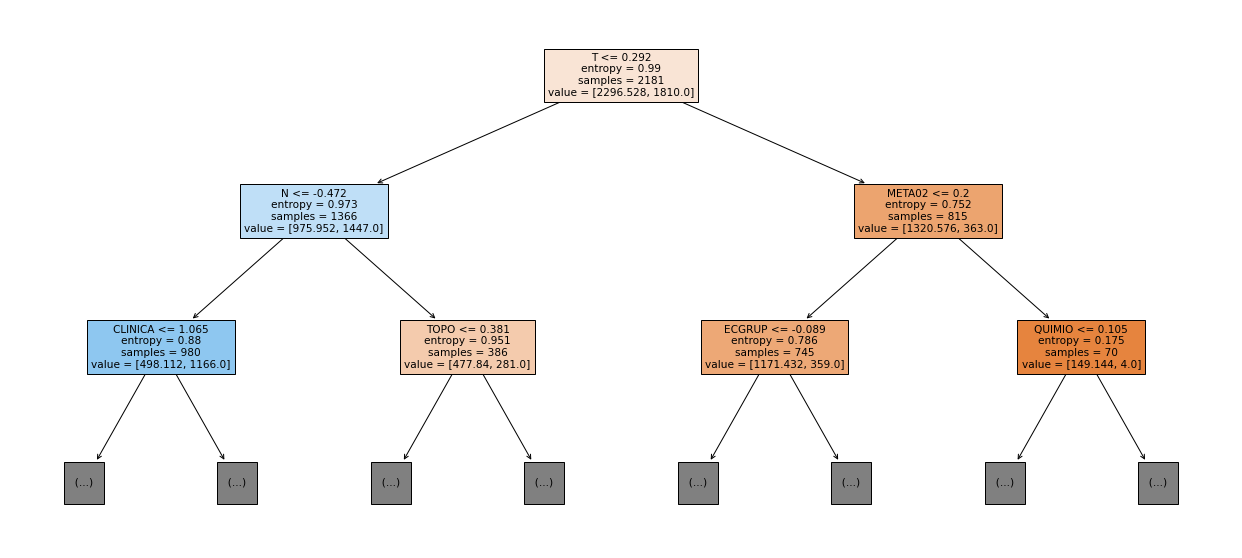

show_tree(rf_sp, feat_cols_SP, 2)
[ ]:

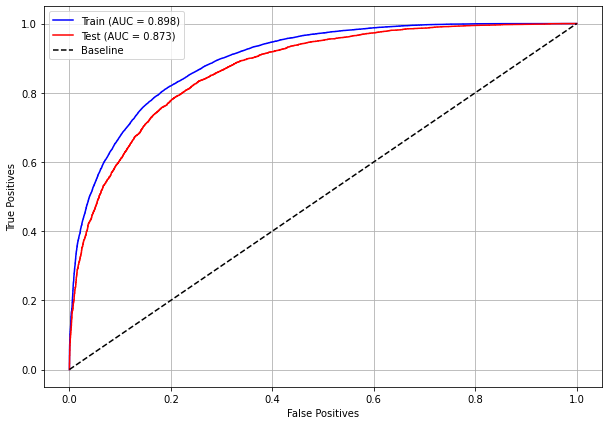

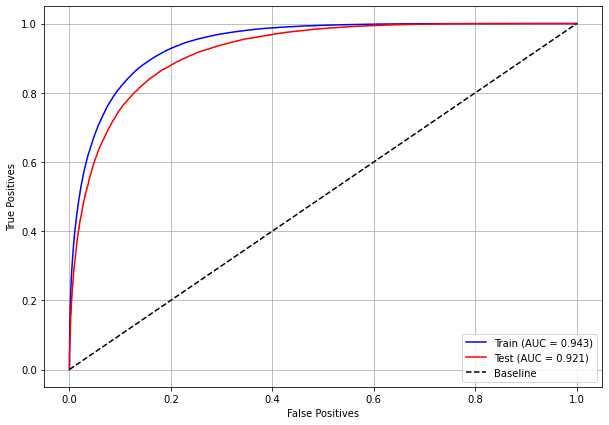

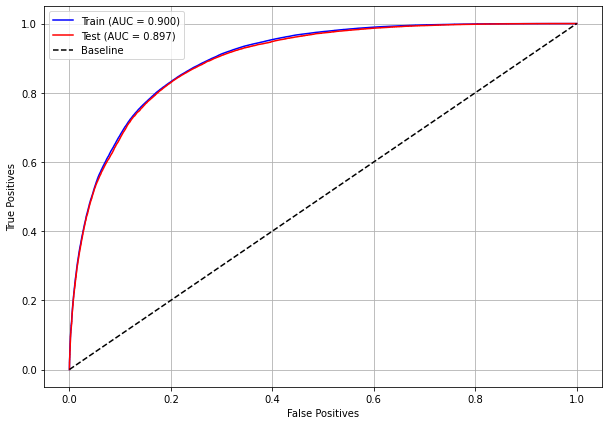

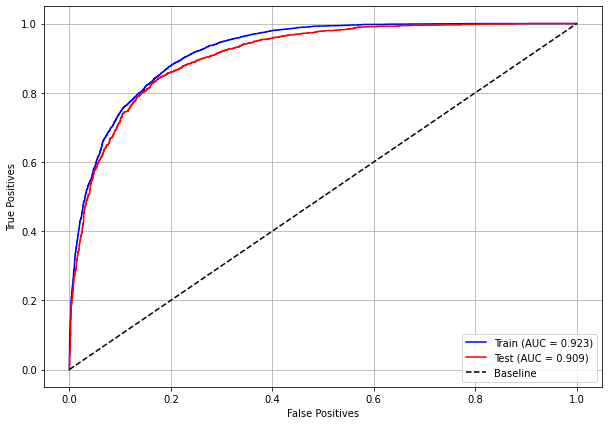

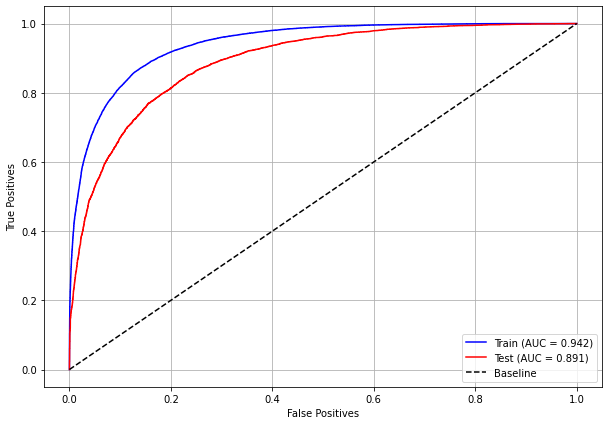

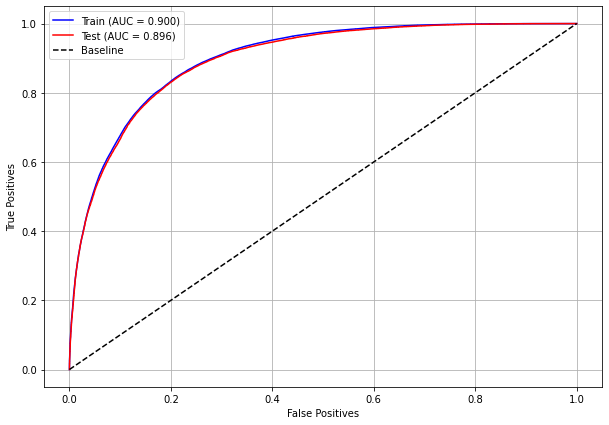

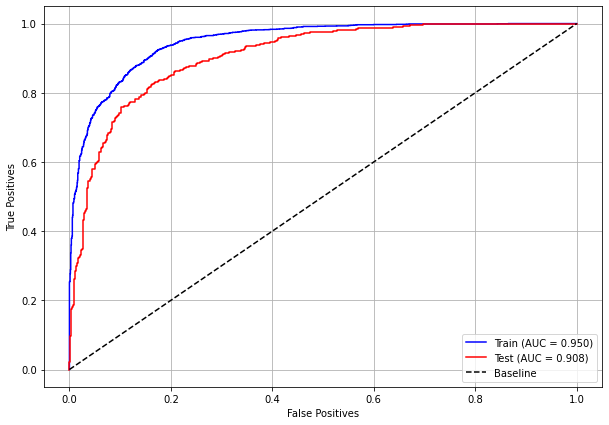

plot_roc_curve(rf_sp, X_train_SP, X_test_SP, y_train_SP, y_test_SP)
[ ]:
plot_feat_importances(rf_sp, feat_cols_SP)
The four most important features in the model were
EC,ECGRUP,TOPOandANODIAG.
[ ]:

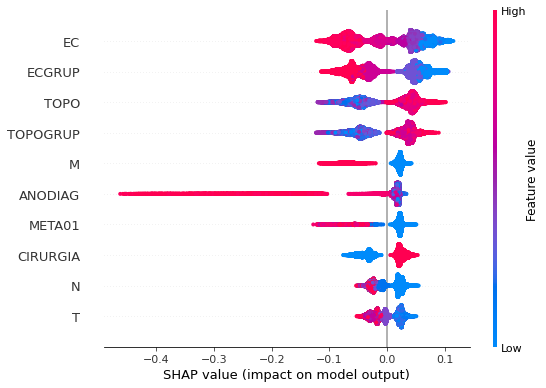

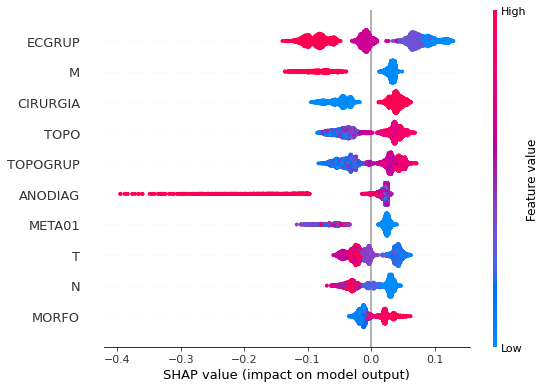

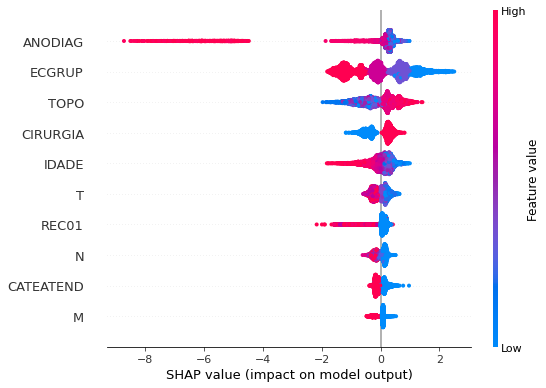

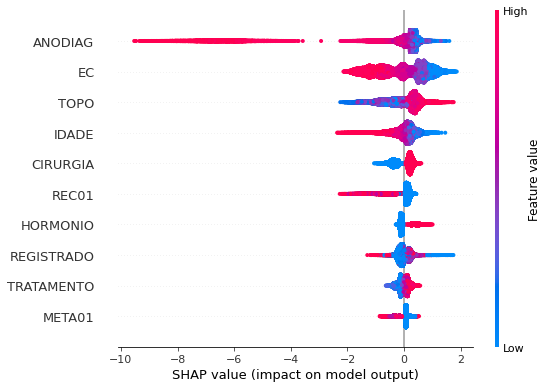

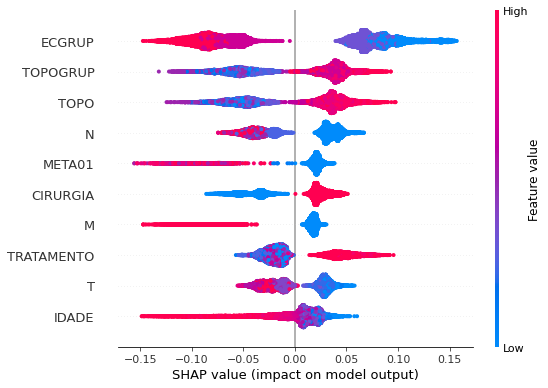

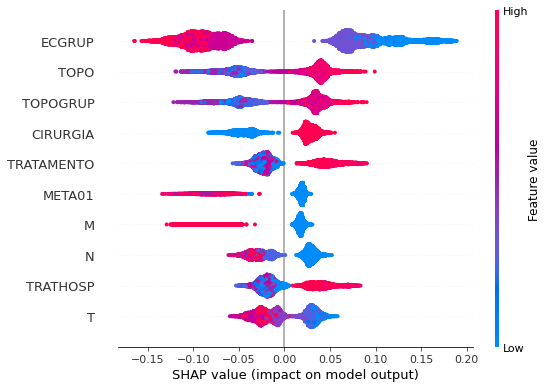

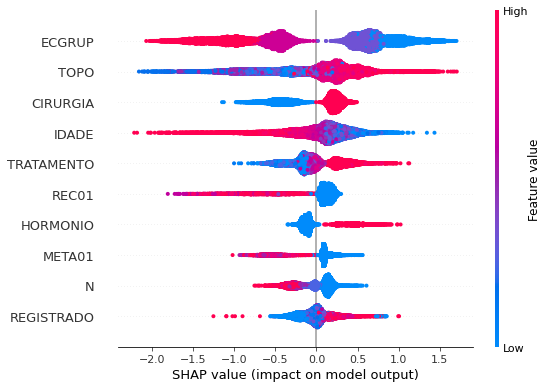

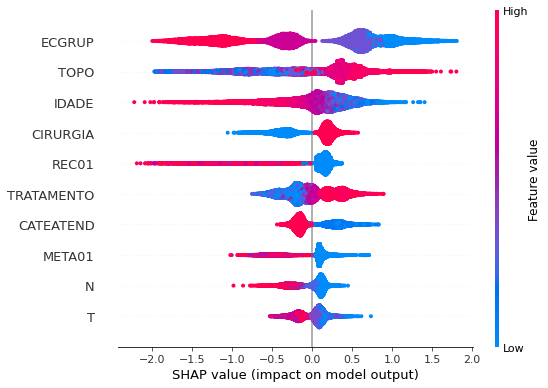

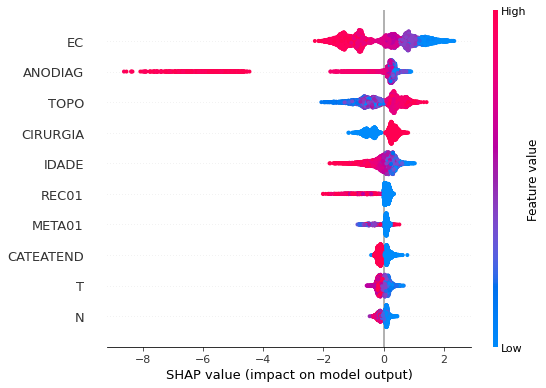

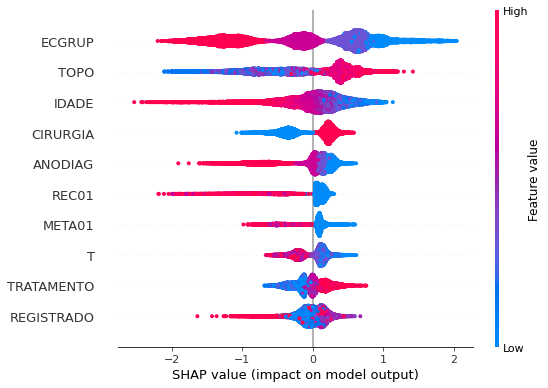

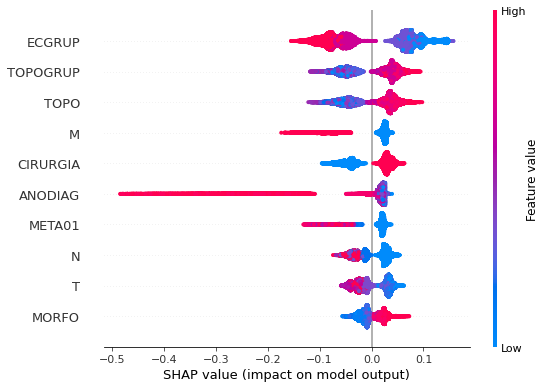

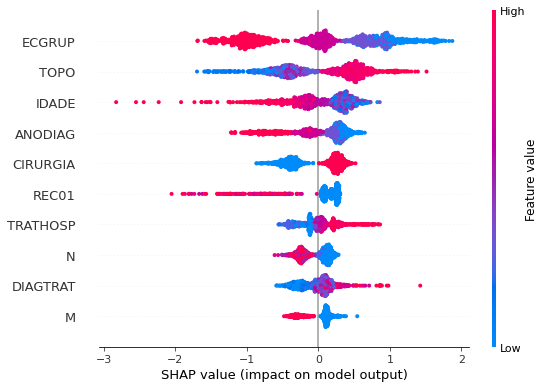

plot_shap_values(rf_sp, X_test_SP, feat_cols_SP)
Note that larger values of the EC column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states
rf_fora = RandomForestClassifier(class_weight={0:1.02, 1:1},
random_state=seed,
criterion='entropy',
max_depth=8)
rf_fora.fit(X_train_OS, y_train_OS)
RandomForestClassifier(class_weight={0: 1.02, 1: 1}, criterion='entropy',
max_depth=8, random_state=10)
[ ]:
display_confusion_matrix(rf_fora, X_test_OS, y_test_OS)
precision recall f1-score support
0 0.851 0.830 0.841 2778
1 0.806 0.829 0.817 2362
accuracy 0.830 5140
macro avg 0.829 0.830 0.829 5140
weighted avg 0.830 0.830 0.830 5140
The confusion matrix obtained for the Random Forest algorithm, with other states data, shows a good performance of the model, because the model achieves a 83% of accuracy.
[ ]:

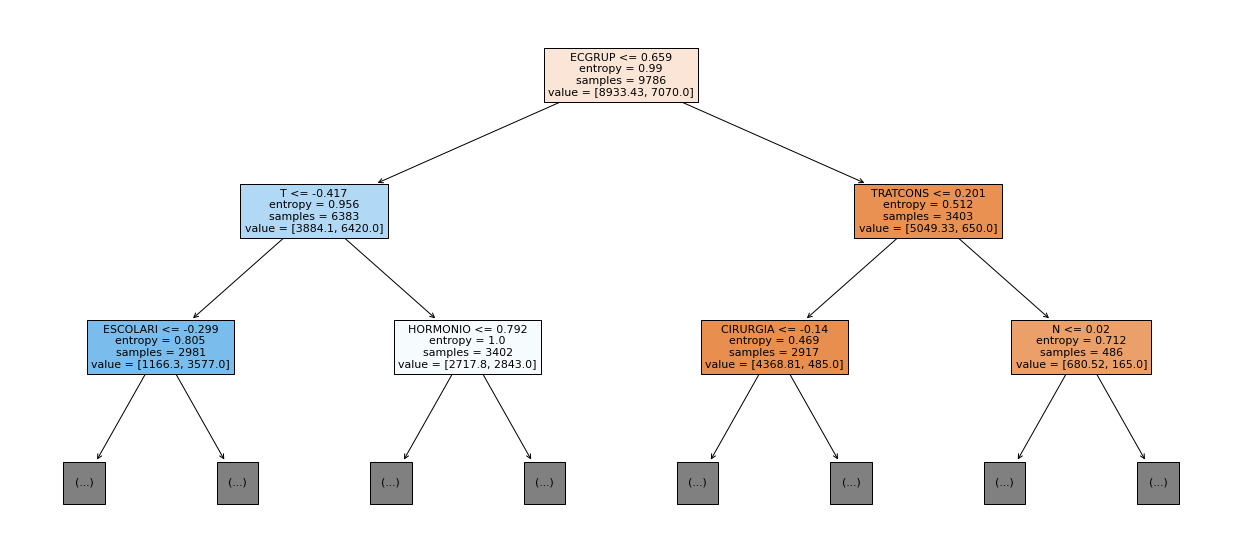

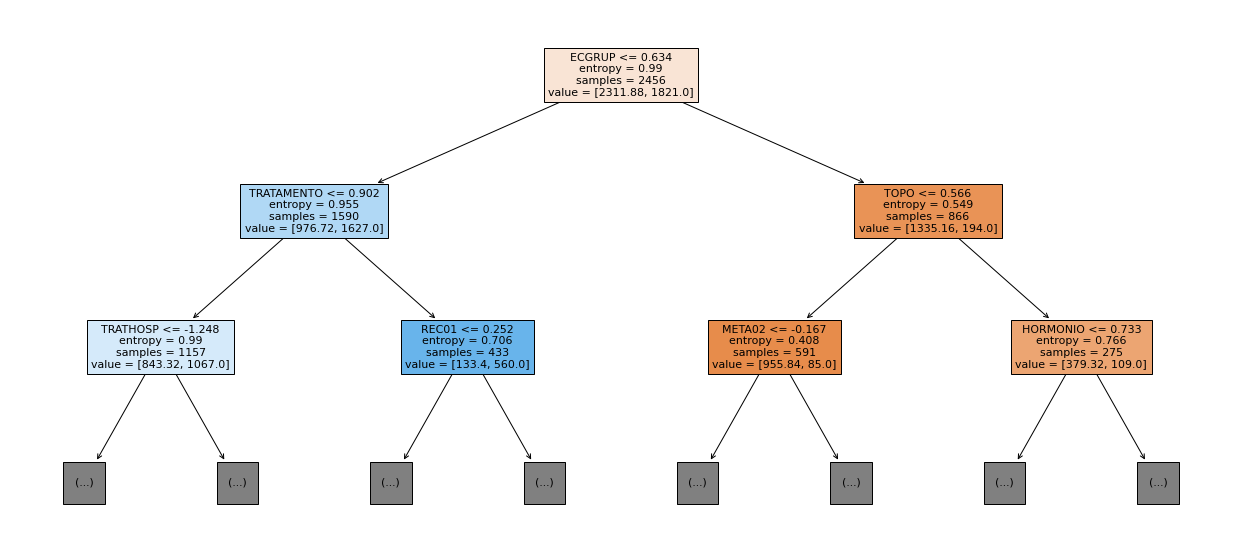

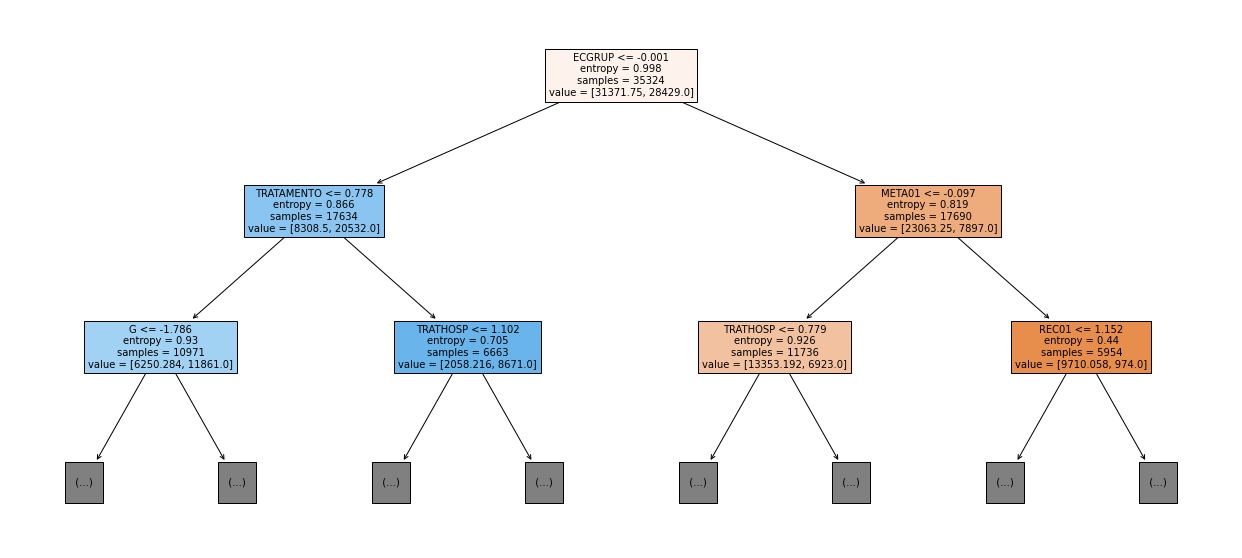

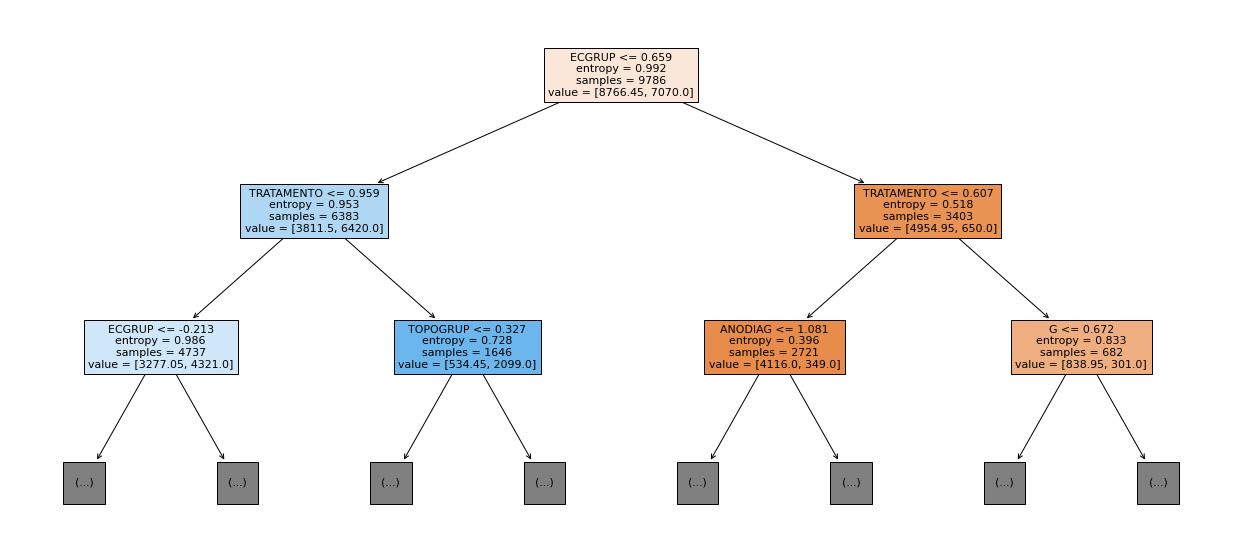

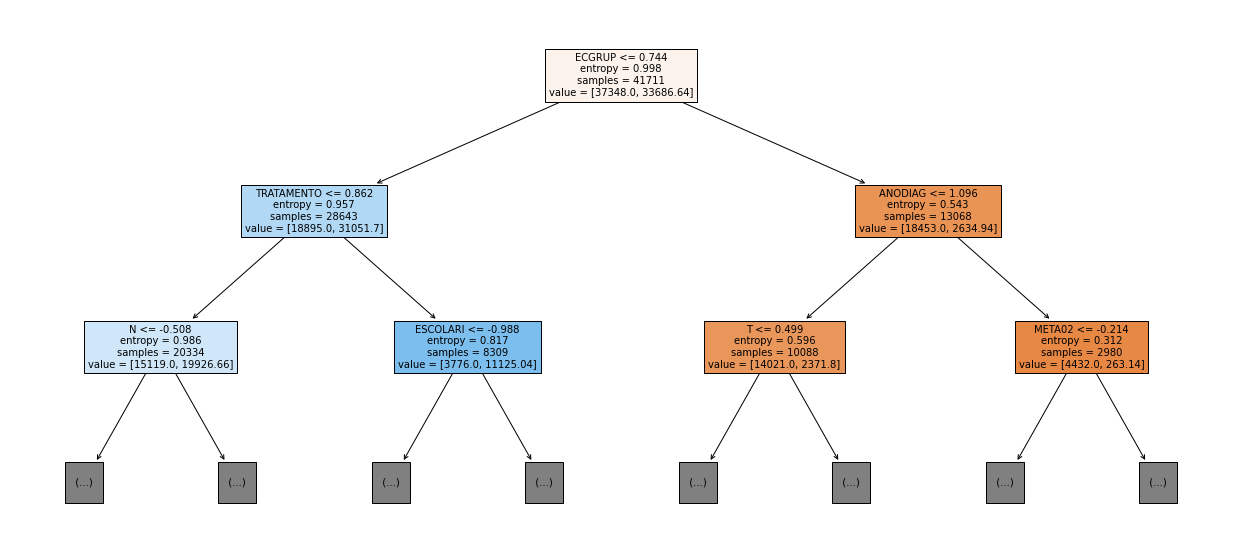

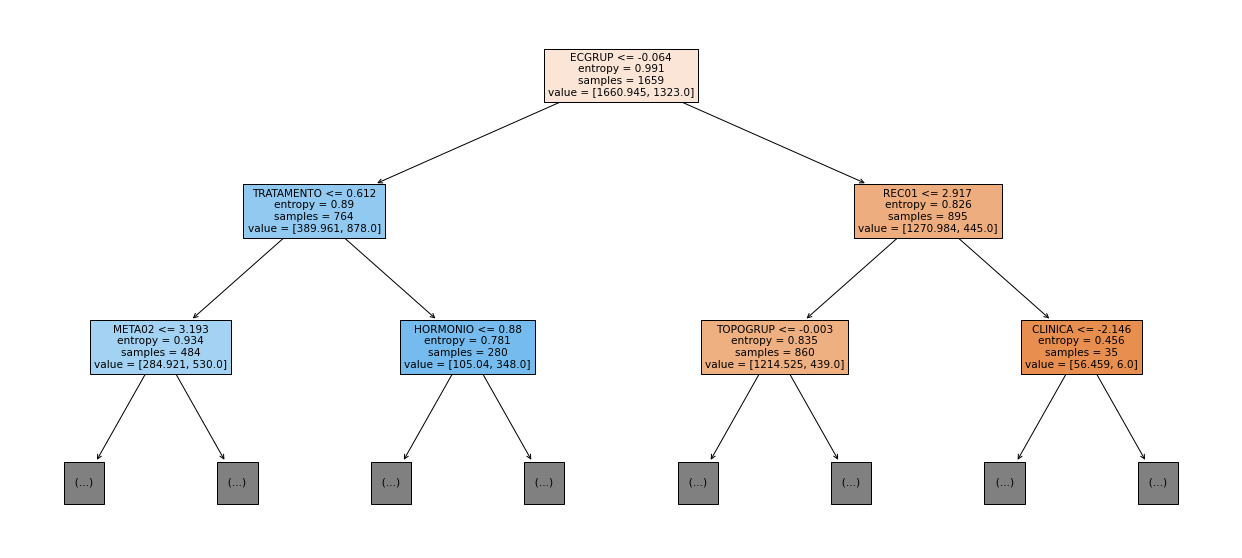

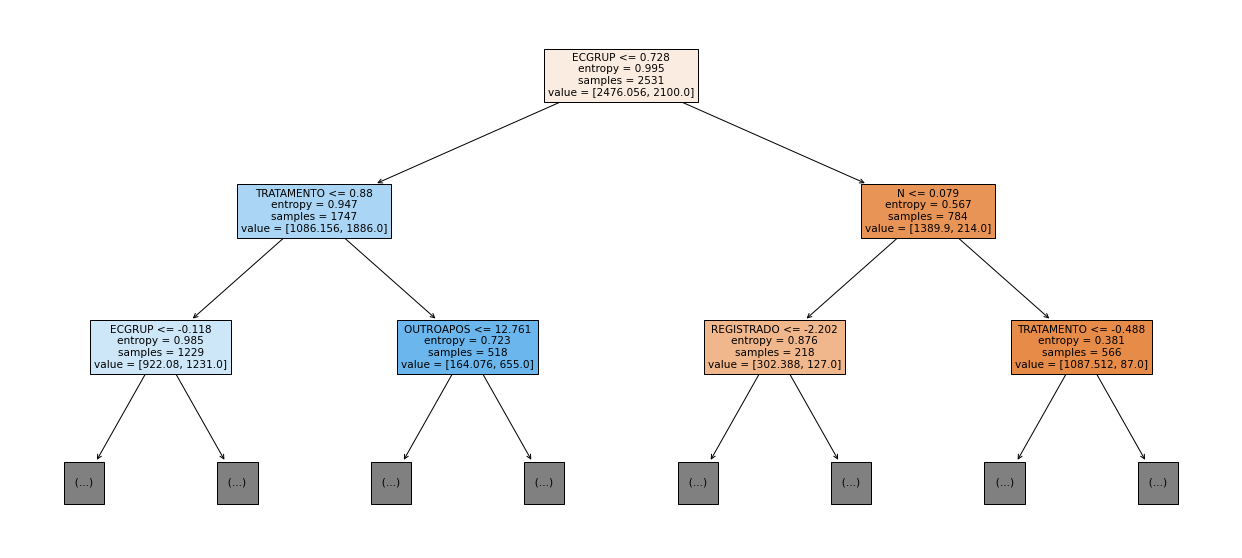

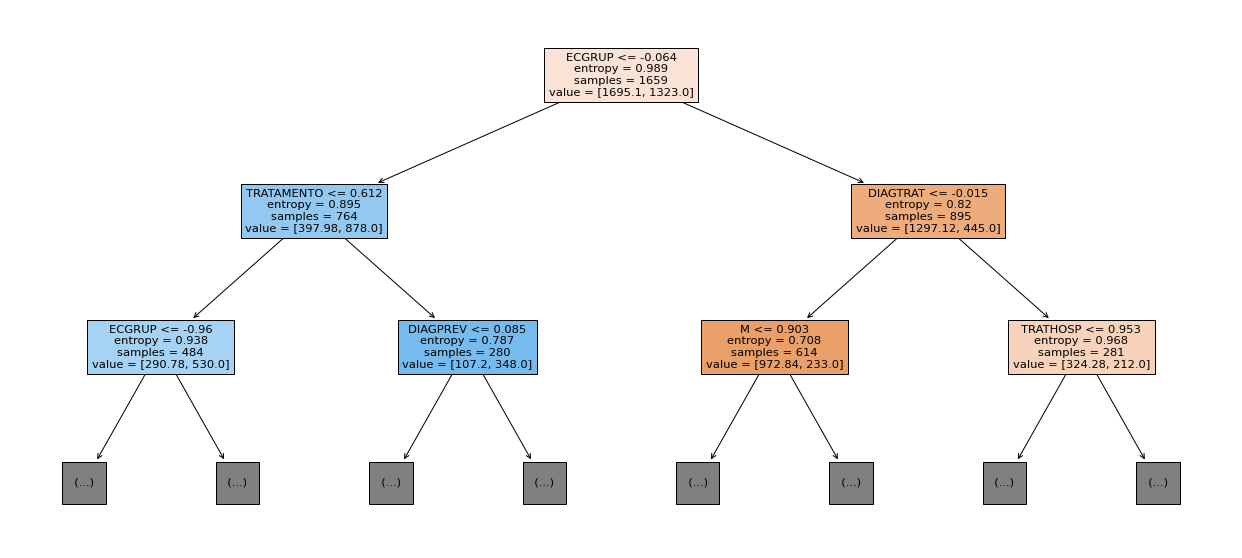

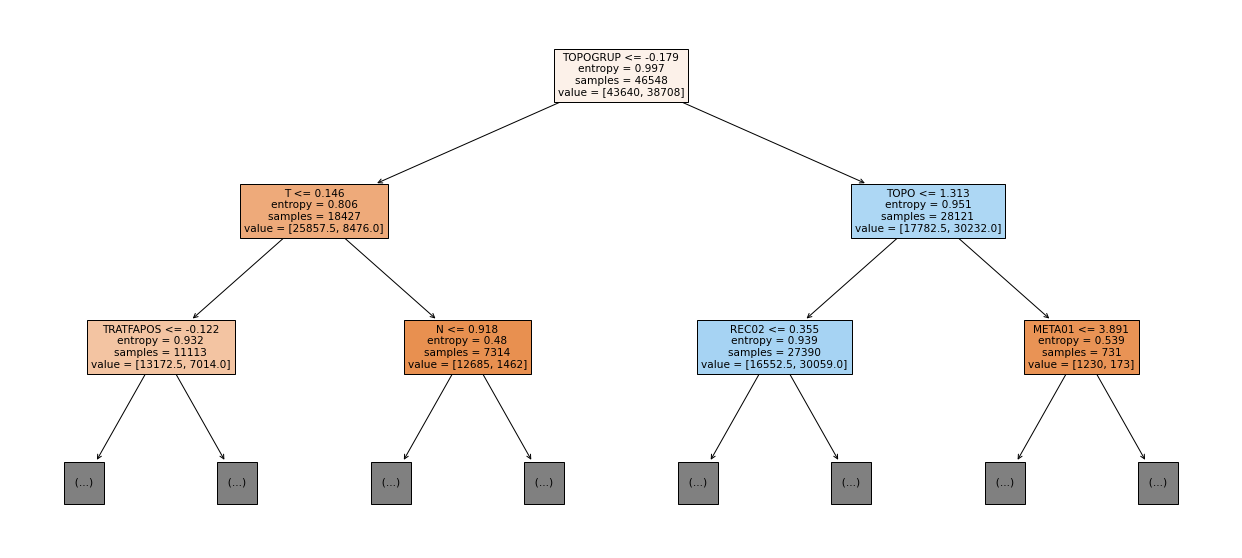

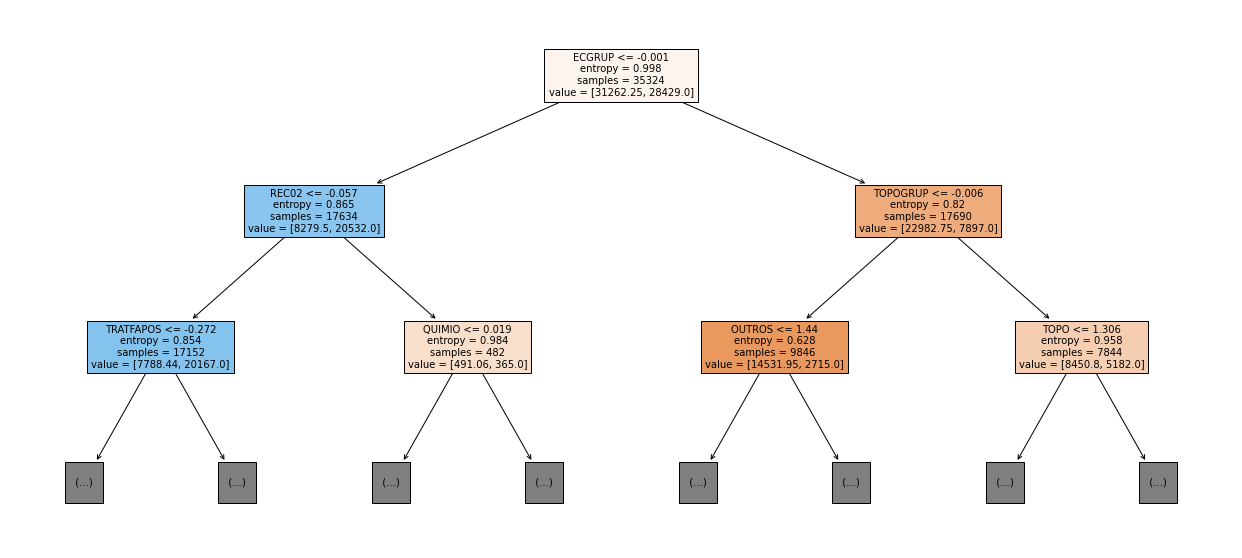

show_tree(rf_fora, feat_cols_OS, 2)
[ ]:

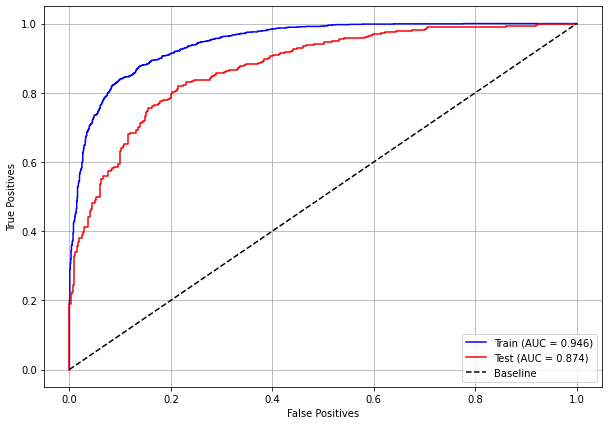

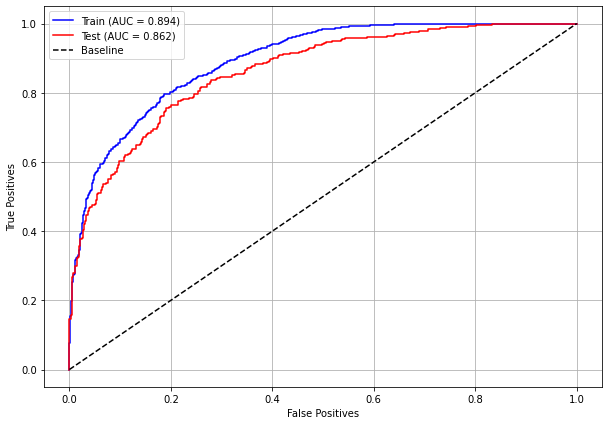

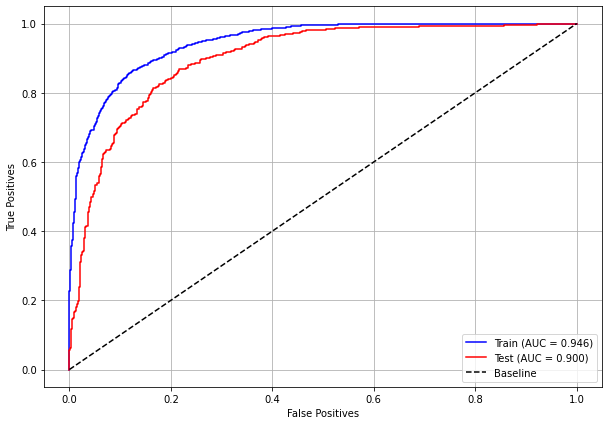

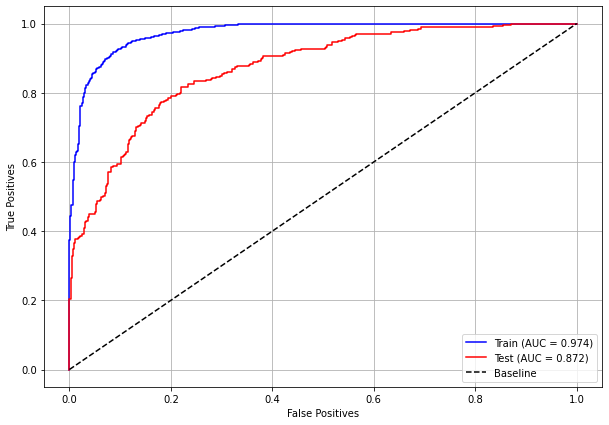

plot_roc_curve(rf_fora, X_train_OS, X_test_OS, y_train_OS, y_test_OS)
[ ]:
plot_feat_importances(rf_fora, feat_cols_OS)
The four most important features in the model were
EC,ECGRUP,ANODIAGandMETA01.
[ ]:

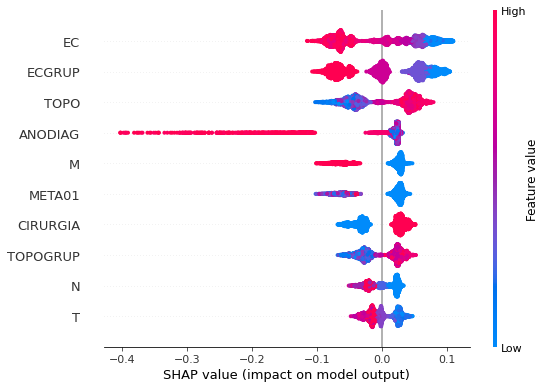

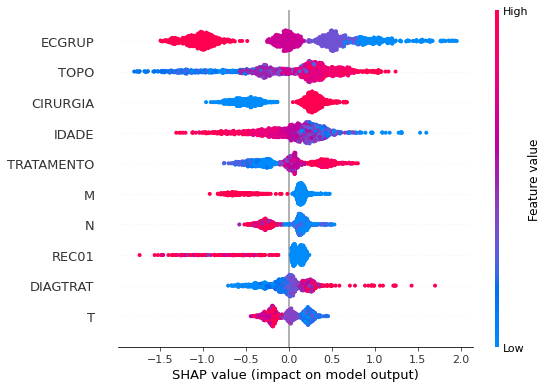

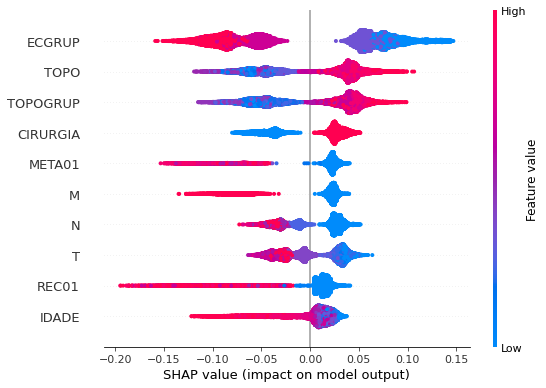

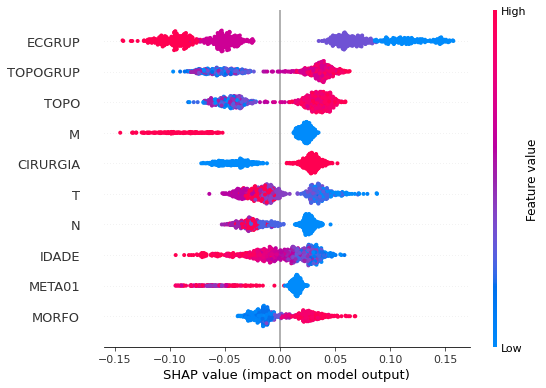

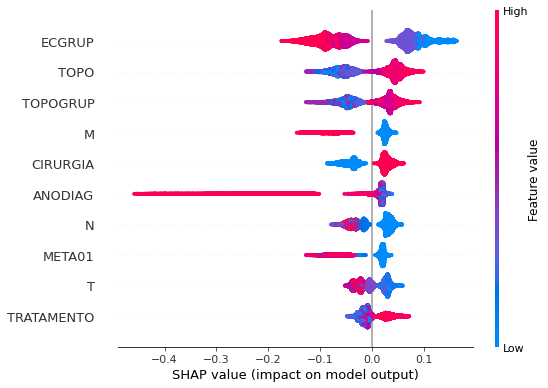

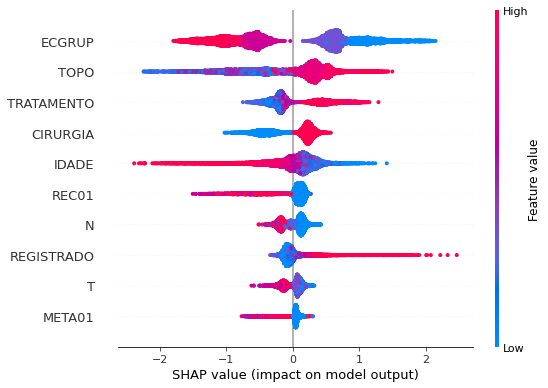

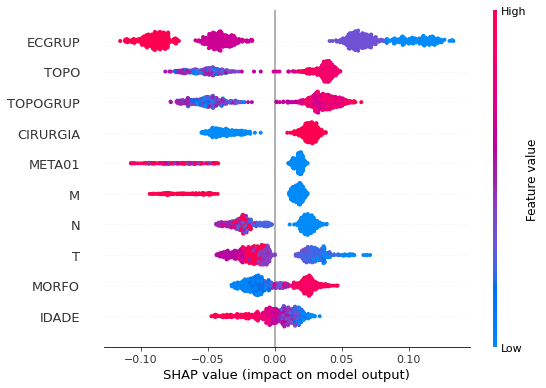

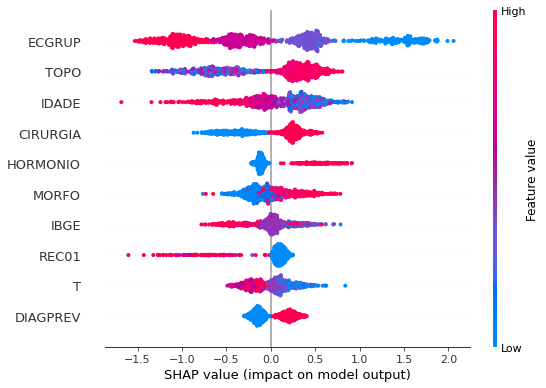

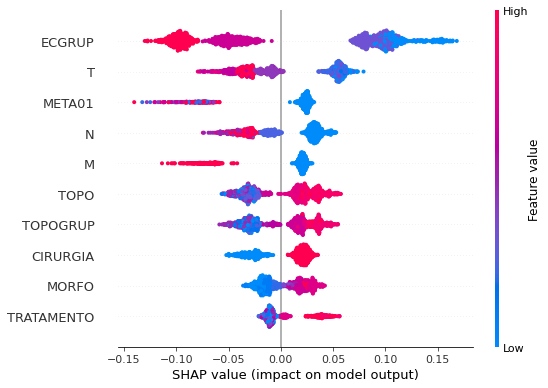

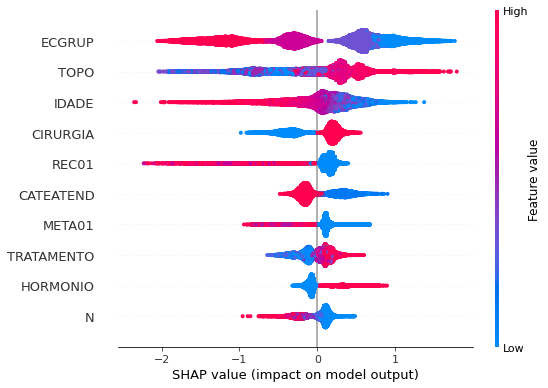

plot_shap_values(rf_fora, X_test_OS, feat_cols_OS)
Note that larger values of the EC column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
Randomized Grid Search
[ ]:
# RandomizedSearchCV
hyperRF = {'n_estimators': [100, 150, 200, 250],
'max_depth': [5, 8, 10, 12, 15],
'min_samples_split': [2, 5, 10, 15],
'min_samples_leaf': [1, 2, 5, 10]}
rf = RandomForestClassifier(random_state=seed, criterion='entropy')
randRS = RandomizedSearchCV(rf, hyperRF, n_iter=20, cv=5, n_jobs=-1,
random_state=seed)
[ ]:
# SP
bestSP = randRS.fit(X_train_SP, y_train_SP)
[ ]:
bestSP.best_params_
{'n_estimators': 200,
'min_samples_split': 10,
'min_samples_leaf': 2,
'max_depth': 15}
[ ]:
# SP
rf_sp_opt = bestSP.best_estimator_
rf_sp_opt.set_params(class_weight={0:1, 1:1.075})
rf_sp_opt.fit(X_train_SP, y_train_SP)
RandomForestClassifier(class_weight={0: 1, 1: 1.075}, criterion='entropy',
max_depth=15, min_samples_leaf=2, min_samples_split=10,
n_estimators=200, random_state=10)
[ ]:
display_confusion_matrix(rf_sp_opt, X_test_SP, y_test_SP)
precision recall f1-score support
0 0.856 0.827 0.841 48187
1 0.795 0.827 0.811 38983
accuracy 0.827 87170
macro avg 0.825 0.827 0.826 87170
weighted avg 0.828 0.827 0.827 87170
[ ]:
# Other States
bestOS = randRS.fit(X_train_OS, y_train_OS)
[ ]:
bestOS.best_params_
{'n_estimators': 200,
'min_samples_split': 10,
'min_samples_leaf': 2,
'max_depth': 15}
[ ]:
# Other states
rf_fora_opt = bestOS.best_estimator_
rf_fora_opt.set_params(class_weight={0:1, 1:1.03})
rf_fora_opt.fit(X_train_OS, y_train_OS)
RandomForestClassifier(class_weight={0: 1, 1: 1.03}, criterion='entropy',
max_depth=15, min_samples_leaf=2, min_samples_split=10,
n_estimators=200, random_state=10)
[ ]:
display_confusion_matrix(rf_fora_opt, X_test_OS, y_test_OS)
precision recall f1-score support
0 0.859 0.839 0.849 2778
1 0.816 0.838 0.827 2362
accuracy 0.839 5140
macro avg 0.838 0.839 0.838 5140
weighted avg 0.839 0.839 0.839 5140
XGBoost
The training of the XGBoost model follows the same pattern with random_state. A higher weight was also used for the class with fewer examples, using the hyperparameter scale_pos_weight.
The hyperparameter max_depth was chosen as 10 because the default value for this hyperparameter is 3, a low value for the amount of data we have.
[ ]:
# SP
xgboost_sp = XGBClassifier(max_depth=10,
scale_pos_weight=1.1,
random_state=seed)
xgboost_sp.fit(X_train_SP, y_train_SP)
XGBClassifier(max_depth=10, random_state=10, scale_pos_weight=1.1)
[ ]:
display_confusion_matrix(xgboost_sp, X_test_SP, y_test_SP)
precision recall f1-score support
0 0.868 0.841 0.854 48187
1 0.810 0.842 0.826 38983
accuracy 0.841 87170
macro avg 0.839 0.841 0.840 87170
weighted avg 0.842 0.841 0.841 87170
The confusion matrix obtained for the XGBoost, with SP data, shows a good performance of the model, with 84% of accuracy.
[ ]:

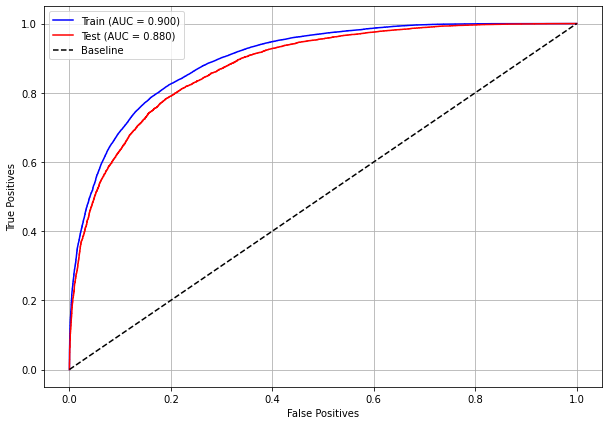

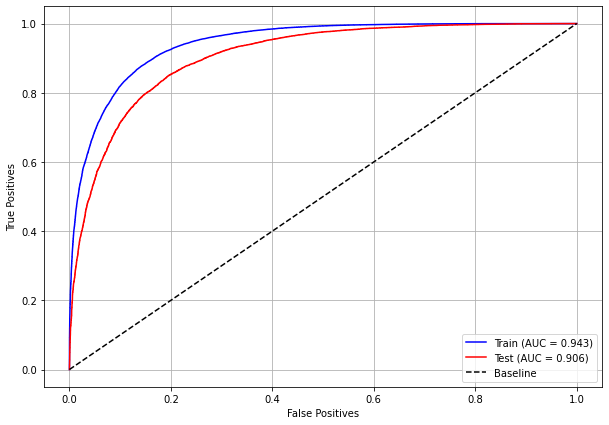

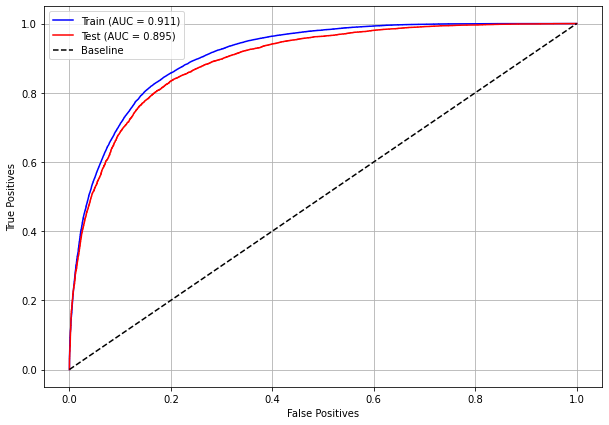

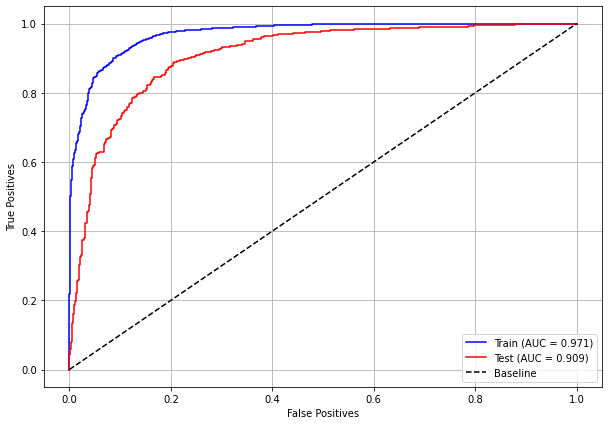

plot_roc_curve(xgboost_sp, X_train_SP, X_test_SP, y_train_SP, y_test_SP)
[ ]:
plot_feat_importances(xgboost_sp, feat_cols_SP)
The four most important features in the model were
ECGRUP,EC,HORMONIOandCIRURGIA.
[ ]:

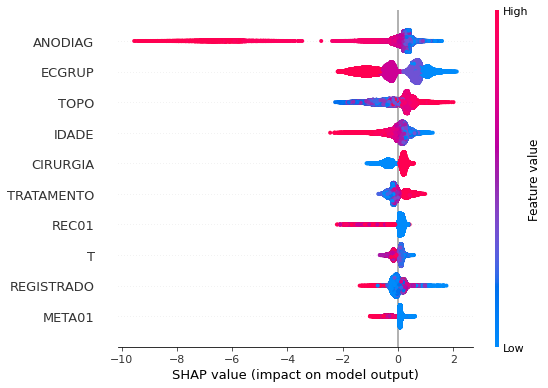

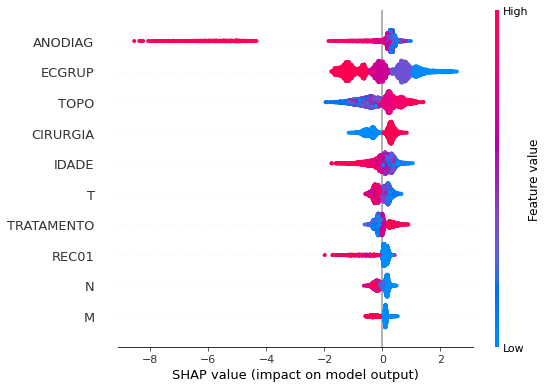

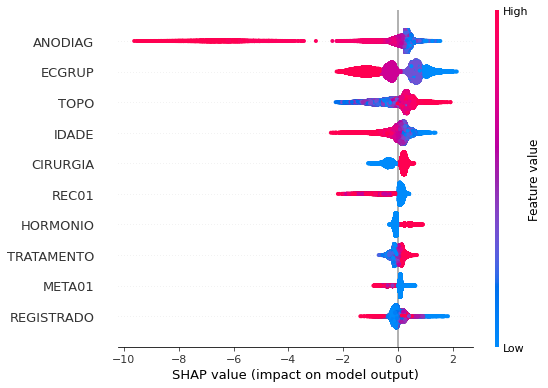

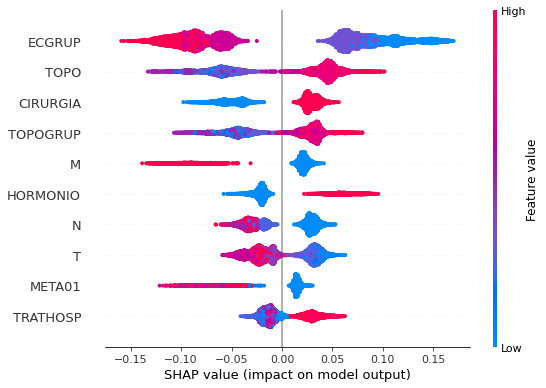

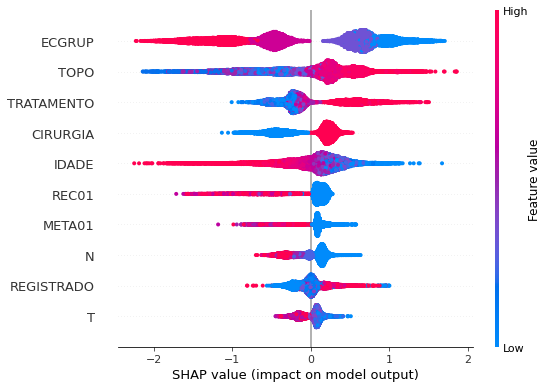

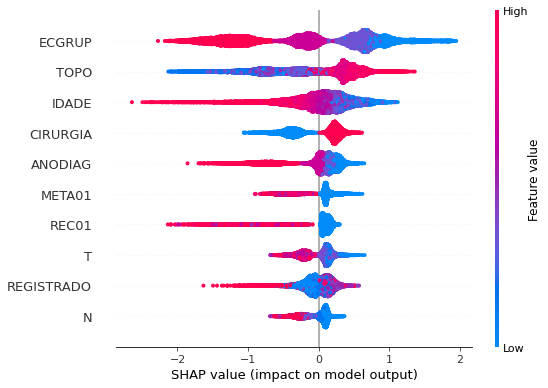

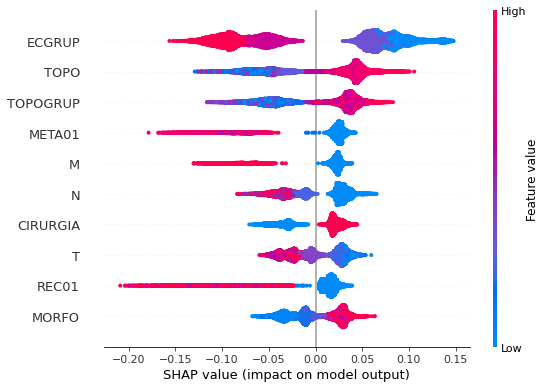

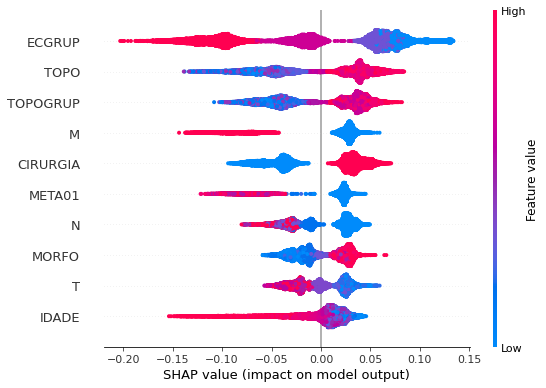

plot_shap_values(xgboost_sp, X_test_SP, feat_cols_SP)

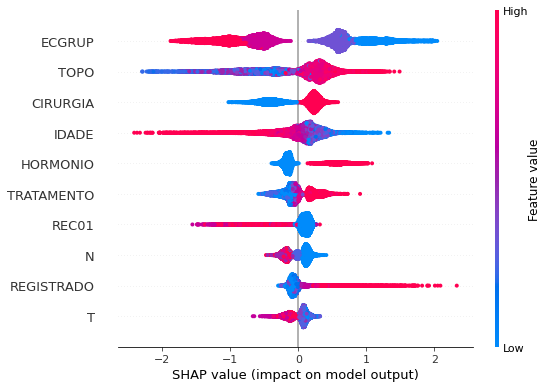

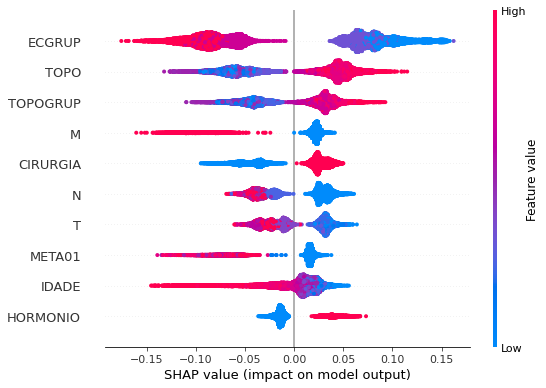

Note that larger values of the ANODIAG column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1.
The other columns shown follow the same logic.
[ ]:
# Other states
xgboost_fora = XGBClassifier(max_depth=8,
scale_pos_weight=1.17,
random_state=seed)
xgboost_fora.fit(X_train_OS, y_train_OS)
XGBClassifier(max_depth=8, random_state=10, scale_pos_weight=1.17)
[ ]:
display_confusion_matrix(xgboost_fora, X_test_OS, y_test_OS)
precision recall f1-score support
0 0.865 0.844 0.854 2778
1 0.822 0.845 0.833 2362
accuracy 0.845 5140
macro avg 0.843 0.845 0.844 5140
weighted avg 0.845 0.845 0.845 5140
The confusion matrix obtained for the XGBoost algorithm, with other states data, shows a good performance of the model, because the model achieves a 84% of accuracy.
[ ]:

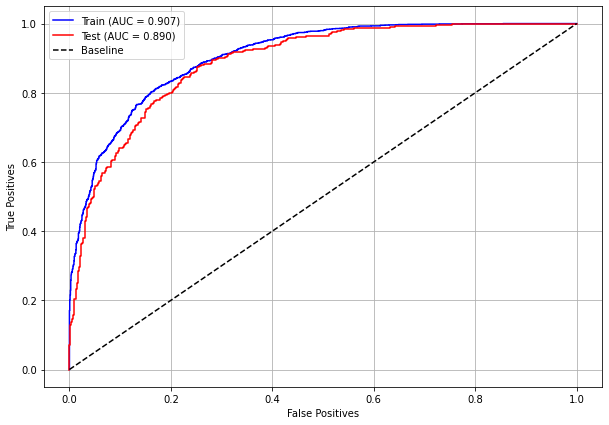

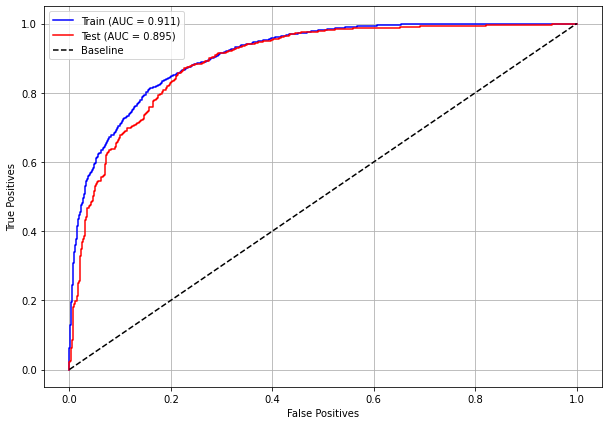

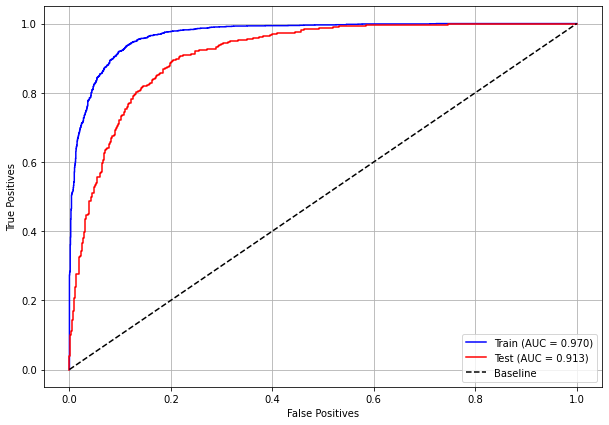

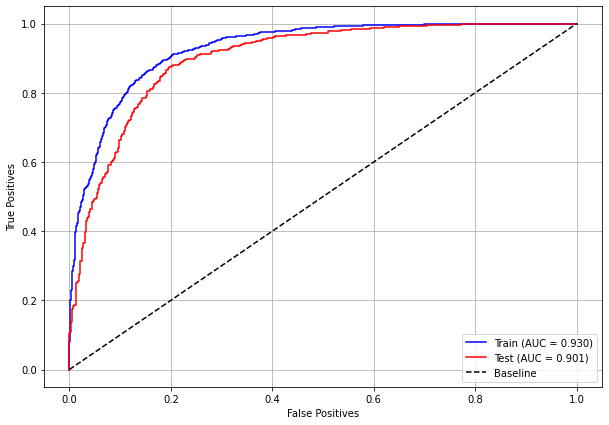

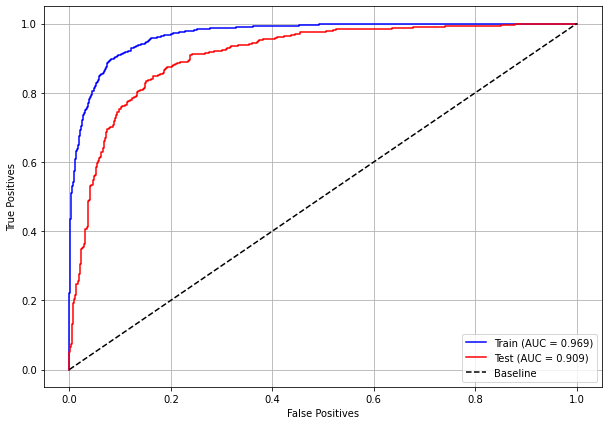

plot_roc_curve(xgboost_fora, X_train_OS, X_test_OS, y_train_OS, y_test_OS)
[ ]:
plot_feat_importances(xgboost_fora, feat_cols_OS)
The four most important features in the model were
EC,CIRURGIA,META01andANODIAG.
[ ]:

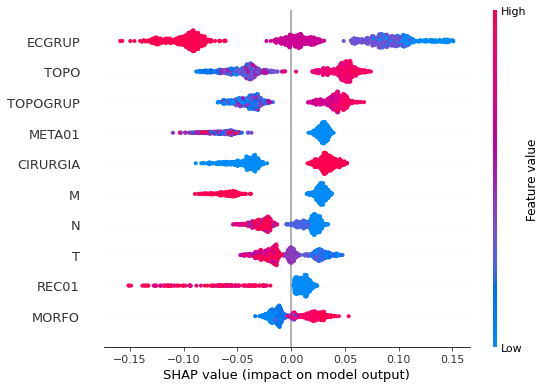

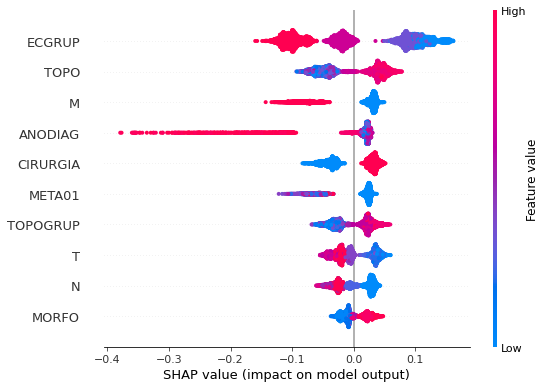

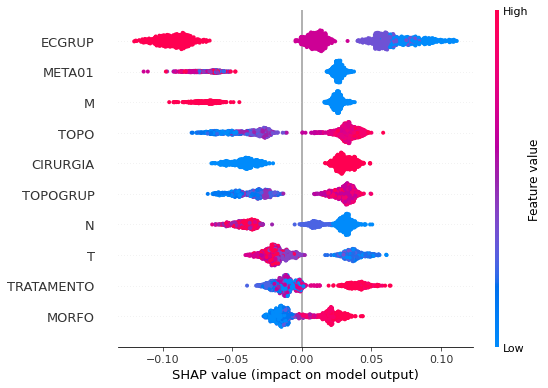

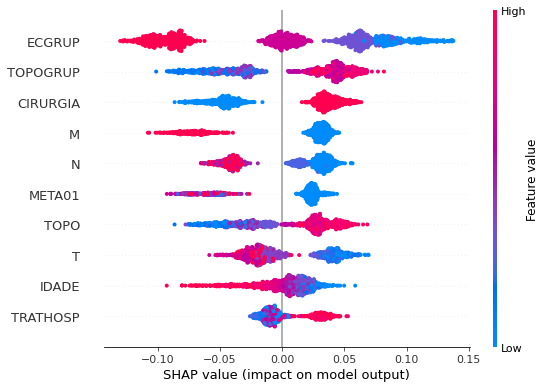

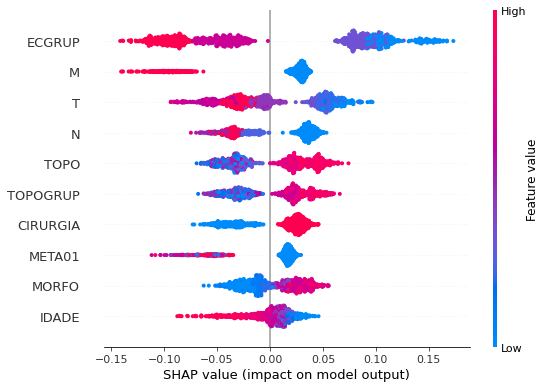

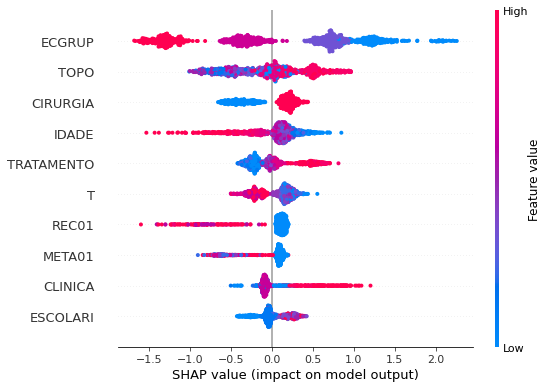

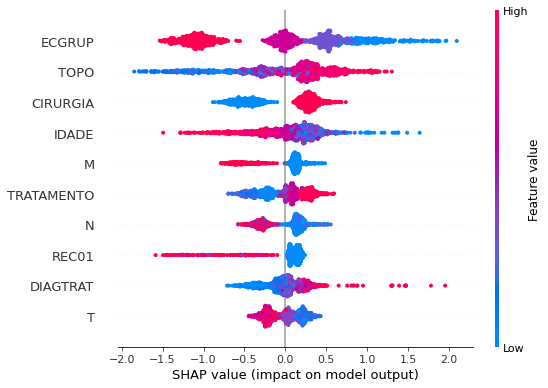

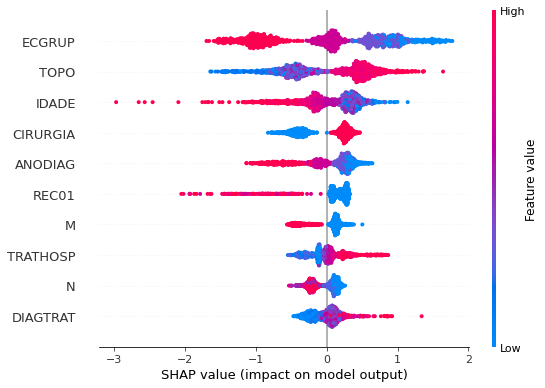

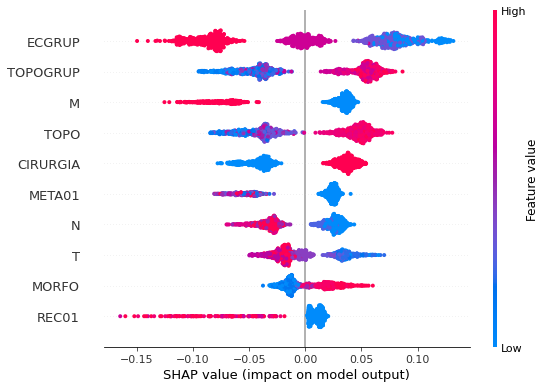

plot_shap_values(xgboost_fora, X_test_OS, feat_cols_OS)
Note that larger values of the EC column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
Randomized Grid Search
[ ]:
# RandomizedSearchCV
hyperXGB = {'learning_rate': [0.05, 0.10, 0.15, 0.20],
'max_depth': [5, 8, 10, 12, 15],
'min_child_weight': [1, 3, 5, 7],
'gamma': [0.0, 0.1, 0.2 , 0.3],
'colsample_bytree': [0.3, 0.4, 0.5, 0.7],
'n_estimators': [100, 150, 200, 250]}
xgboost = XGBClassifier(random_state=seed)
xgbRS = RandomizedSearchCV(xgboost, hyperXGB, n_iter=20, cv=5, n_jobs=-1,
random_state=seed)
[ ]:
# SP
bestSP = xgbRS.fit(X_train_SP, y_train_SP)
[ ]:
bestSP.best_params_
{'n_estimators': 200,
'min_child_weight': 5,
'max_depth': 10,
'learning_rate': 0.1,
'gamma': 0.2,
'colsample_bytree': 0.4}
[ ]:
# SP
xgb_sp_opt = bestSP.best_estimator_
xgb_sp_opt.set_params(scale_pos_weight=1.1)
xgb_sp_opt.fit(X_train_SP, y_train_SP)
XGBClassifier(colsample_bytree=0.4, gamma=0.2, max_depth=10, min_child_weight=5,
n_estimators=200, random_state=10, scale_pos_weight=1.1)
[ ]:
display_confusion_matrix(xgb_sp_opt, X_test_SP, y_test_SP)
precision recall f1-score support
0 0.870 0.844 0.857 48187
1 0.814 0.844 0.829 38983
accuracy 0.844 87170
macro avg 0.842 0.844 0.843 87170
weighted avg 0.845 0.844 0.845 87170
[ ]:
# Other States
bestOS = xgbRS.fit(X_train_OS, y_train_OS)
[ ]:
bestOS.best_params_
{'n_estimators': 150,
'min_child_weight': 7,
'max_depth': 8,
'learning_rate': 0.05,
'gamma': 0.2,
'colsample_bytree': 0.4}
[ ]:
# Other states
xgb_fora_opt = bestOS.best_estimator_
xgb_fora_opt.set_params(scale_pos_weight=1.1)
xgb_fora_opt.fit(X_train_OS, y_train_OS)
XGBClassifier(colsample_bytree=0.4, gamma=0.2, learning_rate=0.05, max_depth=8,
min_child_weight=7, n_estimators=150, random_state=10,
scale_pos_weight=1.1)
[ ]:
display_confusion_matrix(xgb_fora_opt, X_test_OS, y_test_OS)
precision recall f1-score support
0 0.868 0.848 0.858 2778
1 0.826 0.849 0.837 2362
accuracy 0.848 5140
macro avg 0.847 0.848 0.848 5140
weighted avg 0.849 0.848 0.848 5140
Second approach
Approach without column EC as a feature.
Preprocessing
Now we are going to divide the data into training and testing, and then do the preprocessing in both datasets to perform the training of the models and their evaluation.
First, it is necessary to define the columns that will be used as features and the label. We will not use some columns of the datasets: UFRESID, because we already have the division between SP and other states in the two datasets.
It was chosen to keep the column IDADE, so we will not use the FAIXAETAR, as well as the column ECGRUP and not the column EC. Finally, the other columns contained in the list list_drop are possible labels, so they will not be used as features for machine learning models.
[ ]:
list_drop = ['UFRESID', 'FAIXAETAR', 'ULTICONS', 'ULTIDIAG', 'ULTITRAT',
'obito_geral', 'obito_cancer', 'vivo_ano1', 'vivo_ano3',
'ULTINFO', 'EC']
# 'RECNENHUM', 'RECLOCAL', 'RECREGIO', 'REC01', 'REC02', 'REC03', 'RECDIST'
lb = 'vivo_ano5'
A function was created to perform the preprocessing, preprocessing, that uses the other functions created, get_train_test (divides the dataset into train and test sets), train_preprocessing (do the preprocessing of the train set) and test_preprocessing (do the preprocessing of the test set).
To see the complete function go to the functions section.
SP
[ ]:
X_train_SP, X_test_SP, y_train_SP, y_test_SP, feat_cols_SP = preprocessing(df_SP_ano5, list_drop, lb,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (261508, 65), X_test = (87170, 65)
y_train = (261508,), y_test = (87170,)
Other states
[ ]:
X_train_OS, X_test_OS, y_train_OS, y_test_OS, feat_cols_OS = preprocessing(df_fora_ano5, list_drop, lb,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (15419, 65), X_test = (5140, 65)
y_train = (15419,), y_test = (5140,)
Training machine learning models
After dividing the data into training and testing, using the encoder and normalizing, the data is ready to be used by the machine learning models.
Random Forest
The first model that will be tested is the Random Forest, for this test the parameter random_state will be used, to obtain the same training values of the model every time it is runned.
The hyperparameter class_weight was also used, because the model has difficulty learning the class with fewer examples, so using this parameter this class will have a higher weight in the training of the model.
[ ]:
# SP
rf_sp = RandomForestClassifier(class_weight={0:1, 1:1.054},
random_state=seed,
criterion='entropy',
max_depth=10)
rf_sp.fit(X_train_SP, y_train_SP)
RandomForestClassifier(class_weight={0: 1, 1: 1.054}, criterion='entropy',
max_depth=10, random_state=10)
[ ]:
display_confusion_matrix(rf_sp, X_test_SP, y_test_SP)
precision recall f1-score support
0 0.844 0.814 0.829 48187
1 0.780 0.814 0.797 38983
accuracy 0.814 87170
macro avg 0.812 0.814 0.813 87170
weighted avg 0.815 0.814 0.815 87170
The confusion matrix obtained for the Random Forest, with SP data, shows a good performance of the model, with 81% of accuracy.
[ ]:
show_tree(rf_sp, feat_cols_SP, 2)
[ ]:
plot_roc_curve(rf_sp, X_train_SP, X_test_SP, y_train_SP, y_test_SP)
[ ]:
plot_feat_importances(rf_sp, feat_cols_SP)
The four most important features in the model were
ECGRUP,ANODIAG,MandTOPOGRUP.
[ ]:
plot_shap_values(rf_sp, X_test_SP, feat_cols_SP)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states
rf_fora = RandomForestClassifier(class_weight={0:1.07, 1:1},
random_state=seed,
criterion='entropy',
max_depth=8)
rf_fora.fit(X_train_OS, y_train_OS)
RandomForestClassifier(class_weight={0: 1.07, 1: 1}, criterion='entropy',
max_depth=8, random_state=10)
[ ]:
display_confusion_matrix(rf_fora, X_test_OS, y_test_OS)
precision recall f1-score support
0 0.854 0.832 0.843 2778
1 0.808 0.833 0.820 2362
accuracy 0.832 5140
macro avg 0.831 0.832 0.831 5140
weighted avg 0.833 0.832 0.832 5140
The confusion matrix obtained for the Random Forest algorithm, with other states data, shows a good performance of the model, because the model achieves a 83% of accuracy.
[ ]:
show_tree(rf_fora, feat_cols_OS, 2)
[ ]:
plot_roc_curve(rf_fora, X_train_OS, X_test_OS, y_train_OS, y_test_OS)
[ ]:
plot_feat_importances(rf_fora, feat_cols_OS)
The four most important features in the model were
ECGRUP,M,ANODIAGandMETA01.
[ ]:
plot_shap_values(rf_fora, X_test_OS, feat_cols_OS)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
XGBoost
The training of the XGBoost model follows the same pattern with random_state. A higher weight was also used for the class with fewer examples, using the hyperparameter scale_pos_weight.
The hyperparameter max_depth was chosen as 10 because the default value for this hyperparameter is 3, a low value for the amount of data we have.
[ ]:
# SP
xgboost_sp = XGBClassifier(max_depth=10,
scale_pos_weight=1.1,
random_state=seed)
xgboost_sp.fit(X_train_SP, y_train_SP)
XGBClassifier(max_depth=10, random_state=10, scale_pos_weight=1.1)
[ ]:
display_confusion_matrix(xgboost_sp, X_test_SP, y_test_SP)
precision recall f1-score support
0 0.867 0.841 0.854 48187
1 0.811 0.841 0.825 38983
accuracy 0.841 87170
macro avg 0.839 0.841 0.840 87170
weighted avg 0.842 0.841 0.841 87170
The confusion matrix obtained for the XGBoost, with SP data, shows a good performance of the model, with 84% of accuracy.
[ ]:
plot_roc_curve(xgboost_sp, X_train_SP, X_test_SP, y_train_SP, y_test_SP)
[ ]:
plot_feat_importances(xgboost_sp, feat_cols_SP)
The four most important features in the model were
ECGRUP,HORMONIO,CIRURGIAandANODIAG.
[ ]:
plot_shap_values(xgboost_sp, X_test_SP, feat_cols_SP)
Note that larger values of the ANODIAG column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1.
The other columns shown follow the same logic.
[ ]:
# Other states
xgboost_fora = XGBClassifier(max_depth=8,
scale_pos_weight=1.14,
random_state=seed)
xgboost_fora.fit(X_train_OS, y_train_OS)
XGBClassifier(max_depth=8, random_state=10, scale_pos_weight=1.14)
[ ]:
display_confusion_matrix(xgboost_fora, X_test_OS, y_test_OS)
precision recall f1-score support
0 0.862 0.841 0.851 2778
1 0.818 0.841 0.829 2362
accuracy 0.841 5140
macro avg 0.840 0.841 0.840 5140
weighted avg 0.841 0.841 0.841 5140
The confusion matrix obtained for the XGBoost algorithm, with other states data, shows a good performance of the model, because the model achieves a 84% of accuracy.
[ ]:
plot_roc_curve(xgboost_fora, X_train_OS, X_test_OS, y_train_OS, y_test_OS)
[ ]:
plot_feat_importances(xgboost_fora, feat_cols_OS)
The four most important features in the model were
ECGRUP, with a good advantage,HORMONIO,ANODIAGandCIRURGIA.
[ ]:
plot_shap_values(xgboost_fora, X_test_OS, feat_cols_OS)
Note that larger values of the ANODIAG column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1.
The other columns shown follow the same logic.
Third approach
Approach without columns EC and HORMONIO as features.
Preprocessing
Now we are going to divide the data into training and testing, and then do the preprocessing in both datasets to perform the training of the models and their evaluation.
First, it is necessary to define the columns that will be used as features and the label. We will not use some columns of the datasets: UFRESID, because we already have the division between SP and other states in the two datasets.
It was chosen to keep the column IDADE, so we will not use the FAIXAETAR, as well as the column ECGRUP and not the column EC. Finally, the other columns contained in the list list_drop are possible labels, so they will not be used as features for machine learning models.
[ ]:
list_drop = ['UFRESID', 'FAIXAETAR', 'ULTICONS', 'ULTIDIAG', 'ULTITRAT',
'obito_geral', 'obito_cancer', 'vivo_ano1', 'vivo_ano3',
'ULTINFO', 'EC', 'HORMONIO']
# 'RECNENHUM', 'RECLOCAL', 'RECREGIO', 'REC01', 'REC02', 'REC03', 'RECDIST'
lb = 'vivo_ano5'
A function was created to perform the preprocessing, preprocessing, that uses the other functions created, get_train_test (divides the dataset into train and test sets), train_preprocessing (do the preprocessing of the train set) and test_preprocessing (do the preprocessing of the test set).
To see the complete function go to the functions section.
SP
[ ]:
X_train_SP, X_test_SP, y_train_SP, y_test_SP, feat_cols_SP = preprocessing(df_SP_ano5, list_drop, lb,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (261508, 64), X_test = (87170, 64)
y_train = (261508,), y_test = (87170,)
Other states
[ ]:
X_train_OS, X_test_OS, y_train_OS, y_test_OS, feat_cols_OS = preprocessing(df_fora_ano5, list_drop, lb,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (15419, 64), X_test = (5140, 64)
y_train = (15419,), y_test = (5140,)
Training machine learning models
After dividing the data into training and testing, using the encoder and normalizing, the data is ready to be used by the machine learning models.
Random Forest
The first model that will be tested is the Random Forest, for this test the parameter random_state will be used, to obtain the same training values of the model every time it is runned.
The hyperparameter class_weight was also used, because the model has difficulty learning the class with fewer examples, so using this parameter this class will have a higher weight in the training of the model.
[ ]:
# SP
rf_sp = RandomForestClassifier(class_weight={0:1, 1:1.047},
random_state=seed,
criterion='entropy',
max_depth=10)
rf_sp.fit(X_train_SP, y_train_SP)
RandomForestClassifier(class_weight={0: 1, 1: 1.047}, criterion='entropy',
max_depth=10, random_state=10)
[ ]:
display_confusion_matrix(rf_sp, X_test_SP, y_test_SP)
precision recall f1-score support
0 0.844 0.814 0.829 48187
1 0.780 0.814 0.797 38983
accuracy 0.814 87170
macro avg 0.812 0.814 0.813 87170
weighted avg 0.815 0.814 0.814 87170
The confusion matrix obtained for the Random Forest, with SP data, shows a good performance of the model, with 81% of accuracy.
[ ]:
show_tree(rf_sp, feat_cols_SP, 2)
[ ]:
plot_roc_curve(rf_sp, X_train_SP, X_test_SP, y_train_SP, y_test_SP)
[ ]:
plot_feat_importances(rf_sp, feat_cols_SP)
The four most important features in the model were
ECGRUP,TOPO,ANODIAGandM.
[ ]:
plot_shap_values(rf_sp, X_test_SP, feat_cols_SP)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states
rf_fora = RandomForestClassifier(class_weight={0:1.05, 1:1},
random_state=seed,
criterion='entropy',
max_depth=8)
rf_fora.fit(X_train_OS, y_train_OS)
RandomForestClassifier(class_weight={0: 1.05, 1: 1}, criterion='entropy',
max_depth=8, random_state=10)
[ ]:
display_confusion_matrix(rf_fora, X_test_OS, y_test_OS)
precision recall f1-score support
0 0.851 0.829 0.840 2778
1 0.805 0.830 0.817 2362
accuracy 0.829 5140
macro avg 0.828 0.829 0.828 5140
weighted avg 0.830 0.829 0.829 5140
The confusion matrix obtained for the Random Forest algorithm, with other states data, shows a good performance of the model, because the model achieves a 83% of accuracy.
[ ]:
show_tree(rf_fora, feat_cols_OS, 2)
[ ]:
plot_roc_curve(rf_fora, X_train_OS, X_test_OS, y_train_OS, y_test_OS)
[ ]:
plot_feat_importances(rf_fora, feat_cols_OS)
The four most important features in the model were
ECGRUP,ANODIAG,MandTOPO.
[ ]:
plot_shap_values(rf_fora, X_test_OS, feat_cols_OS)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
XGBoost
The training of the XGBoost model follows the same pattern with random_state. A higher weight was also used for the class with fewer examples, using the hyperparameter scale_pos_weight.
The hyperparameter max_depth was chosen as 10 because the default value for this hyperparameter is 3, a low value for the amount of data we have.
[ ]:
# SP
xgboost_sp = XGBClassifier(max_depth=10,
scale_pos_weight=1.1,
random_state=seed)
xgboost_sp.fit(X_train_SP, y_train_SP)
XGBClassifier(max_depth=10, random_state=10, scale_pos_weight=1.1)
[ ]:
display_confusion_matrix(xgboost_sp, X_test_SP, y_test_SP)
precision recall f1-score support
0 0.867 0.840 0.853 48187
1 0.810 0.841 0.825 38983
accuracy 0.840 87170
macro avg 0.838 0.840 0.839 87170
weighted avg 0.841 0.840 0.841 87170
The confusion matrix obtained for the XGBoost, with SP data, shows a good performance of the model, with 84% of accuracy.
[ ]:
plot_roc_curve(xgboost_sp, X_train_SP, X_test_SP, y_train_SP, y_test_SP)
[ ]:
plot_feat_importances(xgboost_sp, feat_cols_SP)
The four most important features in the model were
ECGRUP,CIRURGIA,TRATAMENTOandANODIAG.
[ ]:
plot_shap_values(xgboost_sp, X_test_SP, feat_cols_SP)
Note that larger values of the ANODIAG column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1.
The other columns shown follow the same logic.
[ ]:
# Other states
xgboost_fora = XGBClassifier(max_depth=8,
scale_pos_weight=1.05,
random_state=seed)
xgboost_fora.fit(X_train_OS, y_train_OS)
XGBClassifier(max_depth=8, random_state=10, scale_pos_weight=1.05)
[ ]:
display_confusion_matrix(xgboost_fora, X_test_OS, y_test_OS)
precision recall f1-score support
0 0.864 0.844 0.854 2778
1 0.822 0.844 0.833 2362
accuracy 0.844 5140
macro avg 0.843 0.844 0.843 5140
weighted avg 0.845 0.844 0.844 5140
The confusion matrix obtained for the XGBoost algorithm, with other states data, shows a good performance of the model, because the model achieves a 84% of accuracy.
[ ]:
plot_roc_curve(xgboost_fora, X_train_OS, X_test_OS, y_train_OS, y_test_OS)
[ ]:
plot_feat_importances(xgboost_fora, feat_cols_OS)
The four most important features in the model were
ECGRUP,M,CIRURGIAandANODIAG.
[ ]:
plot_shap_values(xgboost_fora, X_test_OS, feat_cols_OS)
Note that larger values of the ANODIAG column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1.
The other columns shown follow the same logic.
Fourth approach
Approach with grouped years and without the column EC.
Preprocessing
Now we are going to divide the data into training and testing, and then do the preprocessing in both datasets to perform the training of the models and their evaluation. We will use the years grouped too, resulting in 5 datasets for SP and more 5 for other states.
First, it is necessary to define the columns that will be used as features and the label. We will not use some columns of the datasets: UFRESID, because we already have the division between SP and other states in the two datasets.
It was chosen to keep the column IDADE, so we will not use the FAIXAETAR, as well as the column ECGRUP and not the column EC. Finally, the other columns contained in the list list_drop are possible labels, so they will not be used as features for machine learning models.
[ ]:
list_drop = ['UFRESID', 'FAIXAETAR', 'ULTICONS', 'ULTIDIAG', 'ULTITRAT',
'obito_geral', 'obito_cancer', 'vivo_ano1', 'vivo_ano3', 'ULTINFO',
'EC']
# 'RECNENHUM', 'RECLOCAL', 'RECREGIO', 'REC01', 'REC02', 'REC03', 'RECDIST'
lb = 'vivo_ano5'
A function was created to perform the preprocessing, preprocessing, that uses the other functions created, get_train_test (divides the dataset into train and test sets), train_preprocessing (do the preprocessing of the train set) and test_preprocessing (do the preprocessing of the test set).
The process will be done 5 times for SP and other states, using the datasets with grouped years.
To see the complete function go to the functions section.
SP
[ ]:
X_trainSP_00_03, X_testSP_00_03, y_trainSP_00_03, y_testSP_00_03, feat_SP_00_03 = preprocessing(df_SP_ano5, list_drop, lb,
group_years=True,
first_year=2000,
last_year=2003,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (44789, 65), X_test = (14930, 65)
y_train = (44789,), y_test = (14930,)
[ ]:
X_trainSP_04_07, X_testSP_04_07, y_trainSP_04_07, y_testSP_04_07, feat_SP_04_07 = preprocessing(df_SP_ano5, list_drop, lb,
group_years=True,
first_year=2004,
last_year=2007,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (55804, 65), X_test = (18602, 65)
y_train = (55804,), y_test = (18602,)
[ ]:
X_trainSP_08_11, X_testSP_08_11, y_trainSP_08_11, y_testSP_08_11, feat_SP_08_11 = preprocessing(df_SP_ano5, list_drop, lb,
group_years=True,
first_year=2008,
last_year=2011,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (73620, 65), X_test = (24541, 65)
y_train = (73620,), y_test = (24541,)
[ ]:
X_trainSP_12_15, X_testSP_12_15, y_trainSP_12_15, y_testSP_12_15, feat_SP_12_15 = preprocessing(df_SP_ano5, list_drop, lb,
group_years=True,
first_year=2012,
last_year=2015,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (65896, 65), X_test = (21966, 65)
y_train = (65896,), y_test = (21966,)
Other states
[ ]:
X_trainOS_00_03, X_testOS_00_03, y_trainOS_00_03, y_testOS_00_03, feat_OS_00_03 = preprocessing(df_fora_ano5, list_drop, lb,
group_years=True,
first_year=2000,
last_year=2003,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (2588, 65), X_test = (863, 65)
y_train = (2588,), y_test = (863,)
[ ]:
X_trainOS_04_07, X_testOS_04_07, y_trainOS_04_07, y_testOS_04_07, feat_OS_04_07 = preprocessing(df_fora_ano5, list_drop, lb,
group_years=True,
first_year=2004,
last_year=2007,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (3396, 65), X_test = (1133, 65)
y_train = (3396,), y_test = (1133,)
[ ]:
X_trainOS_08_11, X_testOS_08_11, y_trainOS_08_11, y_testOS_08_11, feat_OS_08_11 = preprocessing(df_fora_ano5, list_drop, lb,
group_years=True,
first_year=2008,
last_year=2011,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (3926, 65), X_test = (1309, 65)
y_train = (3926,), y_test = (1309,)
[ ]:
X_trainOS_12_15, X_testOS_12_15, y_trainOS_12_15, y_testOS_12_15, feat_OS_12_15 = preprocessing(df_fora_ano5, list_drop, lb,
group_years=True,
first_year=2012,
last_year=2015,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (3814, 65), X_test = (1272, 65)
y_train = (3814,), y_test = (1272,)
Training and evaluation of the models
After dividing the data into training and testing, using the encoder and normalizing, the data is ready to be used by the machine learning models.
Random Forest
The first model is the Random Forest, the random_state will be used as a parameter, to obtain the same training values of the model every time it is runned.
The hyperparameter class_weight was used because the models have difficulty to learn the class with fewer examples.
SP
[ ]:
# SP - 2000 to 2003
rf_sp_00_03 = RandomForestClassifier(random_state=seed,
class_weight={0:1, 1:1.015},
criterion='entropy',
max_depth=10)
rf_sp_00_03.fit(X_trainSP_00_03, y_trainSP_00_03)
RandomForestClassifier(class_weight={0: 1, 1: 1.015}, criterion='entropy',
max_depth=10, random_state=10)
[ ]:
display_confusion_matrix(rf_sp_00_03, X_testSP_00_03, y_testSP_00_03)
precision recall f1-score support
0 0.803 0.789 0.796 7787
1 0.774 0.789 0.782 7143
accuracy 0.789 14930
macro avg 0.789 0.789 0.789 14930
weighted avg 0.789 0.789 0.789 14930
The confusion matrix obtained for the Random Forest, with SP data from 2000 to 2003, shows a good performance of the model, with 79% of accuracy.
[ ]:
show_tree(rf_sp_00_03, feat_SP_00_03, 2)
[ ]:
plot_roc_curve(rf_sp_00_03, X_trainSP_00_03, X_testSP_00_03, y_trainSP_00_03, y_testSP_00_03)
[ ]:
plot_feat_importances(rf_sp_00_03, feat_SP_00_03)
The four most important features in the model were
ECGRUP,TOPO,TOPOGRUP, andM.
[ ]:
plot_shap_values(rf_sp_00_03, X_testSP_00_03, feat_SP_00_03)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# SP - 2004 to 2007
rf_sp_04_07 = RandomForestClassifier(random_state=seed,
class_weight={0:1.142, 1:1},
criterion='entropy',
max_depth=10)
rf_sp_04_07.fit(X_trainSP_04_07, y_trainSP_04_07)
RandomForestClassifier(class_weight={0: 1.142, 1: 1}, criterion='entropy',
max_depth=10, random_state=10)
[ ]:
display_confusion_matrix(rf_sp_04_07, X_testSP_04_07, y_testSP_04_07)
precision recall f1-score support
0 0.788 0.795 0.791 9125
1 0.801 0.794 0.797 9477
accuracy 0.794 18602
macro avg 0.794 0.794 0.794 18602
weighted avg 0.794 0.794 0.794 18602
The confusion matrix obtained for the Random Forest, with SP data from 2004 to 2007, shows a good performance of the model, with 79% of accuracy.
[ ]:
show_tree(rf_sp_04_07, feat_SP_04_07, 2)
[ ]:
plot_roc_curve(rf_sp_04_07, X_trainSP_04_07, X_testSP_04_07, y_trainSP_04_07, y_testSP_04_07)
[ ]:
plot_feat_importances(rf_sp_04_07, feat_SP_04_07)
The four most important features in the model were
ECGRUP,TOPO,MandTOPOGRUP.
[ ]:
plot_shap_values(rf_sp_04_07, X_testSP_04_07, feat_SP_04_07)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# SP - 2008 to 2011
rf_sp_08_11 = RandomForestClassifier(random_state=seed,
class_weight={0:1.25, 1:1},
criterion='entropy',
max_depth=10)
rf_sp_08_11.fit(X_trainSP_08_11, y_trainSP_08_11)
RandomForestClassifier(class_weight={0: 1.25, 1: 1}, criterion='entropy',
max_depth=10, random_state=10)
[ ]:
display_confusion_matrix(rf_sp_08_11, X_testSP_08_11, y_testSP_08_11)
precision recall f1-score support
0 0.790 0.805 0.797 11680
1 0.820 0.806 0.813 12861
accuracy 0.805 24541
macro avg 0.805 0.805 0.805 24541
weighted avg 0.806 0.805 0.806 24541
The confusion matrix obtained for the Random Forest, with SP data from 2008 to 2011, shows a good performance of the model, with 80% of accuracy.
[ ]:
show_tree(rf_sp_08_11, feat_SP_08_11, 2)
[ ]:
plot_roc_curve(rf_sp_08_11, X_trainSP_08_11, X_testSP_08_11, y_trainSP_08_11, y_testSP_08_11)
[ ]:
plot_feat_importances(rf_sp_08_11, feat_SP_08_11)
The four most important features in the model were
ECGRUP,TOPO,TOPOGRUPandMETA01.
[ ]:
plot_shap_values(rf_sp_08_11, X_testSP_08_11, feat_SP_08_11)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# SP - 2012 to 2015
rf_sp_12_15 = RandomForestClassifier(random_state=seed,
class_weight={0:1, 1:1.14},
criterion='entropy',
max_depth=10)
rf_sp_12_15.fit(X_trainSP_12_15, y_trainSP_12_15)
RandomForestClassifier(class_weight={0: 1, 1: 1.14}, criterion='entropy',
max_depth=10, random_state=10)
[ ]:
display_confusion_matrix(rf_sp_12_15, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.853 0.816 0.834 12466
1 0.772 0.815 0.793 9500
accuracy 0.816 21966
macro avg 0.812 0.816 0.813 21966
weighted avg 0.818 0.816 0.816 21966
The confusion matrix obtained for the Random Forest, with SP data from 2012 to 2015, shows a good performance of the model with 82% of accuracy.
[ ]:
show_tree(rf_sp_12_15, feat_SP_12_15, 2)
[ ]:
plot_roc_curve(rf_sp_12_15, X_trainSP_12_15, X_testSP_12_15, y_trainSP_12_15, y_testSP_12_15)
[ ]:
plot_feat_importances(rf_sp_12_15, feat_SP_12_15)
The four most important features in the model were
ECGRUP,TOPO,MandTOPOGRUP.
[ ]:
plot_shap_values(rf_sp_12_15, X_testSP_12_15, feat_SP_12_15)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
Other states
[ ]:
# Other states - 2000 to 2003
rf_fora_00_03 = RandomForestClassifier(random_state=seed,
class_weight={0:1.313, 1:1},
criterion='entropy',
max_depth=8)
rf_fora_00_03.fit(X_trainOS_00_03, y_trainOS_00_03)
RandomForestClassifier(class_weight={0: 1.313, 1: 1}, criterion='entropy',
max_depth=8, random_state=10)
[ ]:
display_confusion_matrix(rf_fora_00_03, X_testOS_00_03, y_testOS_00_03)
precision recall f1-score support
0 0.778 0.788 0.783 419
1 0.797 0.788 0.793 444
accuracy 0.788 863
macro avg 0.788 0.788 0.788 863
weighted avg 0.788 0.788 0.788 863
The confusion matrix obtained for the Random Forest, with other states data from 2000 to 2003, also shows a good performance of the model, and we have a balanced main diagonal with 79% of accuracy.
[ ]:
show_tree(rf_fora_00_03, feat_OS_00_03, 2)
[ ]:
plot_roc_curve(rf_fora_00_03, X_trainOS_00_03, X_testOS_00_03, y_trainOS_00_03, y_testOS_00_03)
[ ]:
plot_feat_importances(rf_fora_00_03, feat_OS_00_03)
The four most important features in the model were
ECGRUP,TOPOGRUP,TOPOandM.
[ ]:
plot_shap_values(rf_fora_00_03, X_testOS_00_03, feat_OS_00_03)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states - 2004 to 2007
rf_fora_04_07 = RandomForestClassifier(random_state=seed,
class_weight={0:1.448, 1:1},
criterion='entropy',
max_depth=8)
rf_fora_04_07.fit(X_trainOS_04_07, y_trainOS_04_07)
RandomForestClassifier(class_weight={0: 1.448, 1: 1}, criterion='entropy',
max_depth=8, random_state=10)
[ ]:
display_confusion_matrix(rf_fora_04_07, X_testOS_04_07, y_testOS_04_07)
precision recall f1-score support
0 0.792 0.814 0.803 528
1 0.834 0.813 0.823 605
accuracy 0.814 1133
macro avg 0.813 0.814 0.813 1133
weighted avg 0.814 0.814 0.814 1133
The confusion matrix obtained for the Random Forest, with other states data from 2004 to 2007, also shows a good performance of the model, with 81% of accuracy.
[ ]:
show_tree(rf_fora_04_07, feat_OS_04_07, 2)
[ ]:
plot_roc_curve(rf_fora_04_07, X_trainOS_04_07, X_testOS_04_07, y_trainOS_04_07, y_testOS_04_07)
[ ]:
plot_feat_importances(rf_fora_04_07, feat_OS_04_07)
The four most important features in the model were
ECGRUP,M,TandTOPO.
[ ]:
plot_shap_values(rf_fora_04_07, X_testOS_04_07, feat_OS_04_07)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states - 2008 to 2011
rf_fora_08_11 = RandomForestClassifier(random_state=seed,
class_weight={0:1.497, 1:1},
criterion='entropy',
max_depth=8)
rf_fora_08_11.fit(X_trainOS_08_11, y_trainOS_08_11)
RandomForestClassifier(class_weight={0: 1.497, 1: 1}, criterion='entropy',
max_depth=8, random_state=10)
[ ]:
display_confusion_matrix(rf_fora_08_11, X_testOS_08_11, y_testOS_08_11)
precision recall f1-score support
0 0.800 0.823 0.811 604
1 0.844 0.824 0.834 705
accuracy 0.824 1309
macro avg 0.822 0.823 0.823 1309
weighted avg 0.824 0.824 0.824 1309
The confusion matrix obtained for the Random Forest, with other states data from 2008 to 2011, also shows a good performance of the model, presenting 82% of accuracy.
[ ]:
show_tree(rf_fora_08_11, feat_OS_08_11, 2)
[ ]:
plot_roc_curve(rf_fora_08_11, X_trainOS_08_11, X_testOS_08_11, y_trainOS_08_11, y_testOS_08_11)
[ ]:
plot_feat_importances(rf_fora_08_11, feat_OS_08_11)
The four most important features in the model were
ECGRUP,M,TOPOGRUPandTOPO.
[ ]:
plot_shap_values(rf_fora_08_11, X_testOS_08_11, feat_OS_08_11)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states - 2012 to 2015
rf_fora_12_15 = RandomForestClassifier(random_state=seed,
class_weight={0:1.16, 1:1},
criterion='entropy',
max_depth=8)
rf_fora_12_15.fit(X_trainOS_12_15, y_trainOS_12_15)
RandomForestClassifier(class_weight={0: 1.16, 1: 1}, criterion='entropy',
max_depth=8, random_state=10)
[ ]:
display_confusion_matrix(rf_fora_12_15, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.849 0.837 0.843 664
1 0.825 0.837 0.831 608
accuracy 0.837 1272
macro avg 0.837 0.837 0.837 1272
weighted avg 0.837 0.837 0.837 1272
The confusion matrix obtained for the Random Forest, with other states data from 2012 to 2015, also shows a good performance of the model, presenting 84% of accuracy.
[ ]:
show_tree(rf_fora_12_15, feat_OS_12_15, 2)
[ ]:
plot_roc_curve(rf_fora_12_15, X_trainOS_12_15, X_testOS_12_15, y_trainOS_12_15, y_testOS_12_15)
[ ]:
plot_feat_importances(rf_fora_12_15, feat_OS_12_15)
The four most important features in the model were
ECGRUP,M,TOPOandTOPOGRUP.
[ ]:

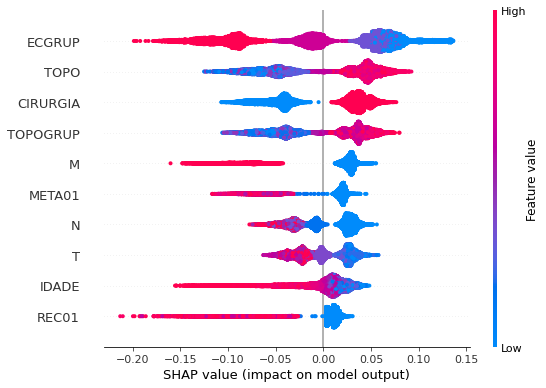

plot_shap_values(rf_fora_12_15, X_testOS_12_15, feat_OS_12_15)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
XGBoost
The training of the XGBoost models follows the same pattern with random_state. The hyperparameter scale_pos_weight was also used in some trainings, in order to obtain a balanced main diagonal in the confusion matrix.
The hyperparameter max_depth was chosen as 10 because the default value for this hyperparameter is 3, a low value for the amount of data we have.
SP
[ ]:
# SP - 2000 to 2003
xgb_sp_00_03 = XGBClassifier(max_depth=8,
random_state=seed,
scale_pos_weight=1.12)
xgb_sp_00_03.fit(X_trainSP_00_03, y_trainSP_00_03)
XGBClassifier(max_depth=8, random_state=10, scale_pos_weight=1.12)
[ ]:
display_confusion_matrix(xgb_sp_00_03, X_testSP_00_03, y_testSP_00_03)
precision recall f1-score support
0 0.823 0.810 0.816 7787
1 0.796 0.810 0.803 7143
accuracy 0.810 14930
macro avg 0.810 0.810 0.810 14930
weighted avg 0.810 0.810 0.810 14930
The confusion matrix obtained for the XGBoost, with SP data from 2000 to 2003, shows a good performance of the model, here with 81% of accuracy.
[ ]:
plot_roc_curve(xgb_sp_00_03, X_trainSP_00_03, X_testSP_00_03, y_trainSP_00_03, y_testSP_00_03)
[ ]:
plot_feat_importances(xgb_sp_00_03, feat_SP_00_03)
Here we noticed that the most used feature was
ECGRUP, with some advantage over the others. Following we haveM,HORMONIOandCIRURGIA.
[ ]:

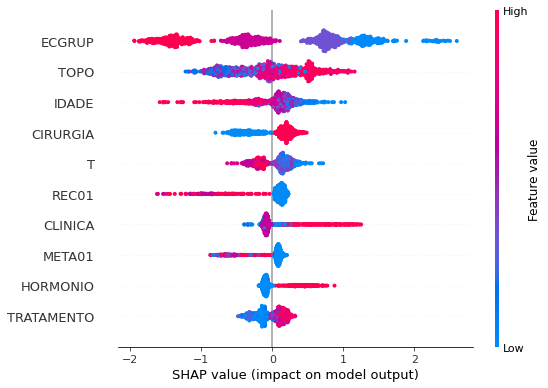

plot_shap_values(xgb_sp_00_03, X_testSP_00_03, feat_SP_00_03)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# SP - 2004 to 2007
xgb_sp_04_07 = XGBClassifier(max_depth=8,
random_state=seed,
scale_pos_weight=0.97)
xgb_sp_04_07.fit(X_trainSP_04_07, y_trainSP_04_07)
XGBClassifier(max_depth=8, random_state=10, scale_pos_weight=0.97)
[ ]:
display_confusion_matrix(xgb_sp_04_07, X_testSP_04_07, y_testSP_04_07)
precision recall f1-score support
0 0.806 0.813 0.809 9125
1 0.818 0.812 0.815 9477
accuracy 0.812 18602
macro avg 0.812 0.812 0.812 18602
weighted avg 0.812 0.812 0.812 18602
The confusion matrix obtained for the XGBoost, with SP data from 2004 to 2007, shows a good performance of the model, with 81% of accuracy.
[ ]:
plot_roc_curve(xgb_sp_04_07, X_trainSP_04_07, X_testSP_04_07, y_trainSP_04_07, y_testSP_04_07)
[ ]:
plot_feat_importances(xgb_sp_04_07, feat_SP_04_07)
Here we noticed that the most used feature was
ECGRUP, with a good advantage over the others. Following we haveHORMONIO,META01andCIRURGIA.
[ ]:
plot_shap_values(xgb_sp_04_07, X_testSP_04_07, feat_SP_04_07)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# SP - 2008 to 2011
xgb_sp_08_11 = XGBClassifier(max_depth=8,
scale_pos_weight=0.82,
random_state=seed)
xgb_sp_08_11.fit(X_trainSP_08_11, y_trainSP_08_11)
XGBClassifier(max_depth=8, random_state=10, scale_pos_weight=0.82)
[ ]:
display_confusion_matrix(xgb_sp_08_11, X_testSP_08_11, y_testSP_08_11)
precision recall f1-score support
0 0.810 0.825 0.818 11680
1 0.839 0.825 0.832 12861
accuracy 0.825 24541
macro avg 0.825 0.825 0.825 24541
weighted avg 0.825 0.825 0.825 24541
The confusion matrix obtained for the XGBoost, with SP data from 2008 to 2011, shows a good performance of the model, with 82% of accuracy.
[ ]:
plot_roc_curve(xgb_sp_08_11, X_trainSP_08_11, X_testSP_08_11, y_trainSP_08_11, y_testSP_08_11)
[ ]:
plot_feat_importances(xgb_sp_08_11, feat_SP_08_11)
Here we noticed that the most used feature was
ECGRUP, with a good advantage over the others. Following we haveHORMONIO,CIRURGIAandMETA01.
[ ]:
plot_shap_values(xgb_sp_08_11, X_testSP_08_11, feat_SP_08_11)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# SP - 2012 to 2015
xgb_sp_12_15 = XGBClassifier(max_depth=8,
random_state=seed,
scale_pos_weight=1.26)
xgb_sp_12_15.fit(X_trainSP_12_15, y_trainSP_12_15)
XGBClassifier(max_depth=8, random_state=10, scale_pos_weight=1.26)
[ ]:
display_confusion_matrix(xgb_sp_12_15, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.864 0.829 0.846 12466
1 0.787 0.829 0.807 9500
accuracy 0.829 21966
macro avg 0.825 0.829 0.827 21966
weighted avg 0.831 0.829 0.829 21966
The confusion matrix obtained for the XGBoost, with SP data from 2012 to 2015, shows a good performance of the model, with 83% of accuracy.
[ ]:
plot_roc_curve(xgb_sp_12_15, X_trainSP_12_15, X_testSP_12_15, y_trainSP_12_15, y_testSP_12_15)
[ ]:
plot_feat_importances(xgb_sp_12_15, feat_SP_12_15)
Here we noticed that the most used feature was
ECGRUP, with a good advantage. Following we haveCIRURGIA,HORMONIOandREC01.
[ ]:
plot_shap_values(xgb_sp_12_15, X_testSP_12_15, feat_SP_12_15)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
Other states
[ ]:
# Other states - 2000 to 2003
xgb_fora_00_03 = XGBClassifier(max_depth=5,
scale_pos_weight=0.91,
random_state=seed)
xgb_fora_00_03.fit(X_trainOS_00_03, y_trainOS_00_03)
XGBClassifier(max_depth=5, random_state=10, scale_pos_weight=0.91)
[ ]:
display_confusion_matrix(xgb_fora_00_03, X_testOS_00_03, y_testOS_00_03)
precision recall f1-score support
0 0.781 0.792 0.787 419
1 0.801 0.791 0.796 444
accuracy 0.791 863
macro avg 0.791 0.791 0.791 863
weighted avg 0.792 0.791 0.791 863
The confusion matrix obtained for the XGBoost, with other states data from 2000 to 2003, also shows a good performance of the model, with 79% of accuracy.
[ ]:
plot_roc_curve(xgb_fora_00_03, X_trainOS_00_03, X_testOS_00_03, y_trainOS_00_03, y_testOS_00_03)
[ ]:
plot_feat_importances(xgb_fora_00_03, feat_OS_00_03)
Again we noticed that the most used feature was
ECGRUP, with a good advantage. The following most important features wereM,HORMONIOandTOPO.
[ ]:

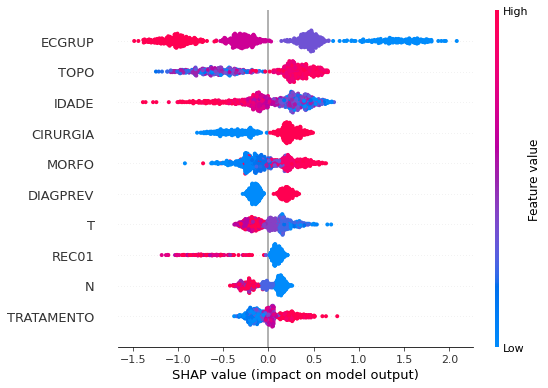

plot_shap_values(xgb_fora_00_03, X_testOS_00_03, feat_OS_00_03)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states - 2004 to 2007
xgb_fora_04_07 = XGBClassifier(max_depth=5,
scale_pos_weight=0.81,
random_state=seed)
xgb_fora_04_07.fit(X_trainOS_04_07, y_trainOS_04_07)
XGBClassifier(max_depth=5, random_state=10, scale_pos_weight=0.81)
[ ]:
display_confusion_matrix(xgb_fora_04_07, X_testOS_04_07, y_testOS_04_07)
precision recall f1-score support
0 0.795 0.816 0.806 528
1 0.836 0.817 0.826 605
accuracy 0.816 1133
macro avg 0.816 0.816 0.816 1133
weighted avg 0.817 0.816 0.817 1133
The confusion matrix obtained for the XGBoost, with other states data from 2004 to 2007, also shows a good performance of the model with 82% of accuracy.
[ ]:
plot_roc_curve(xgb_fora_04_07, X_trainOS_04_07, X_testOS_04_07, y_trainOS_04_07, y_testOS_04_07)
[ ]:
plot_feat_importances(xgb_fora_04_07, feat_OS_04_07)
Again we noticed that the most used feature was
ECGRUP, with a good advantage. The following most important features wereM,CIRURGIAandHORMONIO.
[ ]:
plot_shap_values(xgb_fora_04_07, X_testOS_04_07, feat_OS_04_07)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states - 2008 to 2011
xgb_fora_08_11 = XGBClassifier(max_depth=5,
scale_pos_weight=0.891,
random_state=seed)
xgb_fora_08_11.fit(X_trainOS_08_11, y_trainOS_08_11)
XGBClassifier(max_depth=5, random_state=10, scale_pos_weight=0.891)
[ ]:
display_confusion_matrix(xgb_fora_08_11, X_testOS_08_11, y_testOS_08_11)
precision recall f1-score support
0 0.813 0.834 0.824 604
1 0.855 0.835 0.845 705
accuracy 0.835 1309
macro avg 0.834 0.835 0.834 1309
weighted avg 0.836 0.835 0.835 1309
The confusion matrix obtained for the XGBoost, with other states data from 2008 to 2011, also shows a good performance of the model with 83% of accuracy.
[ ]:
plot_roc_curve(xgb_fora_08_11, X_trainOS_08_11, X_testOS_08_11, y_trainOS_08_11, y_testOS_08_11)
[ ]:
plot_feat_importances(xgb_fora_08_11, feat_OS_08_11)
Again we noticed that the most used feature was
ECGRUP, but not with a lot of advantage. The following most important features wereM,HORMONIOandTRATHOSP.
[ ]:
plot_shap_values(xgb_fora_08_11, X_testOS_08_11, feat_OS_08_11)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states - 2012 to 2015
xgb_fora_12_15 = XGBClassifier(max_depth=5,
scale_pos_weight=0.877,
random_state=seed)
xgb_fora_12_15.fit(X_trainOS_12_15, y_trainOS_12_15)
XGBClassifier(max_depth=5, random_state=10, scale_pos_weight=0.877)
[ ]:
display_confusion_matrix(xgb_fora_12_15, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.848 0.837 0.842 664
1 0.825 0.836 0.830 608
accuracy 0.836 1272
macro avg 0.836 0.836 0.836 1272
weighted avg 0.837 0.836 0.837 1272
The confusion matrix obtained for the XGBoost, with other states data from 2012 to 2015, also shows a good performance of the model with 84% of accuracy.
[ ]:
plot_roc_curve(xgb_fora_12_15, X_trainOS_12_15, X_testOS_12_15, y_trainOS_12_15, y_testOS_12_15)
[ ]:
plot_feat_importances(xgb_fora_12_15, feat_OS_12_15)
The four most important features were
ECGRUP,REC01,CIRURGIAandTRATHOSP.
[ ]:
plot_shap_values(xgb_fora_12_15, X_testOS_12_15, feat_OS_12_15)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
Testing models with data from other years
We will use test data from the following years in the trained models for each set of years grouped together.
Random Forest SP for years 2000 to 2003
[ ]:
display_confusion_matrix(rf_sp_00_03, X_testSP_04_07, y_testSP_04_07)
precision recall f1-score support
0 0.789 0.777 0.783 9125
1 0.789 0.800 0.794 9477
accuracy 0.789 18602
macro avg 0.789 0.789 0.789 18602
weighted avg 0.789 0.789 0.789 18602
[ ]:
display_confusion_matrix(rf_sp_00_03, X_testSP_08_11, y_testSP_08_11)
precision recall f1-score support
0 0.779 0.774 0.776 11680
1 0.796 0.800 0.798 12861
accuracy 0.788 24541
macro avg 0.787 0.787 0.787 24541
weighted avg 0.788 0.788 0.788 24541
[ ]:
display_confusion_matrix(rf_sp_00_03, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.828 0.797 0.812 12466
1 0.746 0.783 0.764 9500
accuracy 0.791 21966
macro avg 0.787 0.790 0.788 21966
weighted avg 0.793 0.791 0.791 21966
XGBoost SP for years 2000 to 2003
[ ]:
display_confusion_matrix(xgb_sp_00_03, X_testSP_04_07, y_testSP_04_07)
precision recall f1-score support
0 0.827 0.756 0.790 9125
1 0.783 0.848 0.814 9477
accuracy 0.803 18602
macro avg 0.805 0.802 0.802 18602
weighted avg 0.805 0.803 0.802 18602
[ ]:
display_confusion_matrix(xgb_sp_00_03, X_testSP_08_11, y_testSP_08_11)
precision recall f1-score support
0 0.813 0.740 0.775 11680
1 0.782 0.845 0.812 12861
accuracy 0.795 24541
macro avg 0.797 0.793 0.794 24541
weighted avg 0.797 0.795 0.794 24541
[ ]:
display_confusion_matrix(xgb_sp_00_03, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.852 0.754 0.800 12466
1 0.719 0.828 0.770 9500
accuracy 0.786 21966
macro avg 0.786 0.791 0.785 21966
weighted avg 0.795 0.786 0.787 21966
Random Forest SP for years 2004 to 2007
[ ]:
display_confusion_matrix(rf_sp_04_07, X_testSP_08_11, y_testSP_08_11)
precision recall f1-score support
0 0.778 0.789 0.784 11680
1 0.806 0.796 0.801 12861
accuracy 0.793 24541
macro avg 0.792 0.792 0.792 24541
weighted avg 0.793 0.793 0.793 24541
[ ]:
display_confusion_matrix(rf_sp_04_07, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.835 0.789 0.811 12466
1 0.742 0.795 0.768 9500
accuracy 0.792 21966
macro avg 0.788 0.792 0.789 21966
weighted avg 0.795 0.792 0.792 21966
XGBoost SP for years 2004 to 2007
[ ]:
display_confusion_matrix(xgb_sp_04_07, X_testSP_08_11, y_testSP_08_11)
precision recall f1-score support
0 0.810 0.783 0.796 11680
1 0.809 0.833 0.821 12861
accuracy 0.809 24541
macro avg 0.809 0.808 0.809 24541
weighted avg 0.809 0.809 0.809 24541
[ ]:
display_confusion_matrix(xgb_sp_04_07, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.855 0.752 0.800 12466
1 0.719 0.833 0.772 9500
accuracy 0.787 21966
macro avg 0.787 0.793 0.786 21966
weighted avg 0.796 0.787 0.788 21966
Random Forest SP for years 2008 to 2011
[ ]:
display_confusion_matrix(rf_sp_08_11, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.847 0.785 0.815 12466
1 0.743 0.814 0.777 9500
accuracy 0.798 21966
macro avg 0.795 0.800 0.796 21966
weighted avg 0.802 0.798 0.799 21966
XGBoost SP for years 2008 to 2011
[ ]:
display_confusion_matrix(xgb_sp_08_11, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.870 0.728 0.793 12466
1 0.706 0.857 0.774 9500
accuracy 0.784 21966
macro avg 0.788 0.793 0.784 21966
weighted avg 0.799 0.784 0.785 21966
Random Forest Other states for years 2000 to 2003
[ ]:
display_confusion_matrix(rf_fora_00_03, X_testOS_04_07, y_testOS_04_07)
precision recall f1-score support
0 0.778 0.797 0.788 528
1 0.819 0.802 0.810 605
accuracy 0.800 1133
macro avg 0.799 0.800 0.799 1133
weighted avg 0.800 0.800 0.800 1133
[ ]:
display_confusion_matrix(rf_fora_00_03, X_testOS_08_11, y_testOS_08_11)
precision recall f1-score support
0 0.753 0.839 0.794 604
1 0.847 0.765 0.804 705
accuracy 0.799 1309
macro avg 0.800 0.802 0.799 1309
weighted avg 0.804 0.799 0.799 1309
[ ]:
display_confusion_matrix(rf_fora_00_03, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.784 0.833 0.808 664
1 0.804 0.750 0.776 608
accuracy 0.793 1272
macro avg 0.794 0.791 0.792 1272
weighted avg 0.794 0.793 0.793 1272
XGBoost Other states for years 2000 to 2003
[ ]:
display_confusion_matrix(xgb_fora_00_03, X_testOS_04_07, y_testOS_04_07)
precision recall f1-score support
0 0.797 0.801 0.799 528
1 0.826 0.821 0.824 605
accuracy 0.812 1133
macro avg 0.811 0.811 0.811 1133
weighted avg 0.812 0.812 0.812 1133
[ ]:
display_confusion_matrix(xgb_fora_00_03, X_testOS_08_11, y_testOS_08_11)
precision recall f1-score support
0 0.785 0.808 0.796 604
1 0.831 0.810 0.820 705
accuracy 0.809 1309
macro avg 0.808 0.809 0.808 1309
weighted avg 0.810 0.809 0.809 1309
[ ]:
display_confusion_matrix(xgb_fora_00_03, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.816 0.815 0.815 664
1 0.798 0.799 0.799 608
accuracy 0.807 1272
macro avg 0.807 0.807 0.807 1272
weighted avg 0.807 0.807 0.807 1272
Random Forest Other states for years 2004 to 2007
[ ]:
display_confusion_matrix(rf_fora_04_07, X_testOS_08_11, y_testOS_08_11)
precision recall f1-score support
0 0.783 0.856 0.818 604
1 0.866 0.797 0.830 705
accuracy 0.824 1309
macro avg 0.825 0.827 0.824 1309
weighted avg 0.828 0.824 0.825 1309
[ ]:
display_confusion_matrix(rf_fora_04_07, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.783 0.840 0.810 664
1 0.810 0.745 0.776 608
accuracy 0.795 1272
macro avg 0.796 0.793 0.793 1272
weighted avg 0.796 0.795 0.794 1272
XGBoost Other states for years 2004 to 2007
[ ]:
display_confusion_matrix(xgb_fora_04_07, X_testOS_08_11, y_testOS_08_11)
precision recall f1-score support
0 0.792 0.846 0.818 604
1 0.860 0.810 0.834 705
accuracy 0.827 1309
macro avg 0.826 0.828 0.826 1309
weighted avg 0.829 0.827 0.827 1309
[ ]:
display_confusion_matrix(xgb_fora_04_07, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.806 0.843 0.824 664
1 0.820 0.778 0.798 608
accuracy 0.812 1272
macro avg 0.813 0.811 0.811 1272
weighted avg 0.812 0.812 0.812 1272
Random Forest Other states for years 2008 to 2011
[ ]:
display_confusion_matrix(rf_fora_08_11, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.848 0.809 0.828 664
1 0.801 0.842 0.821 608
accuracy 0.825 1272
macro avg 0.825 0.825 0.825 1272
weighted avg 0.826 0.825 0.825 1272
XGBoost Other states for years 2008 to 2011
[ ]:
display_confusion_matrix(xgb_fora_08_11, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.833 0.803 0.817 664
1 0.793 0.824 0.808 608
accuracy 0.813 1272
macro avg 0.813 0.813 0.813 1272
weighted avg 0.814 0.813 0.813 1272
Fifth approach
Approach with grouped years and without the columns EC and HORMONIO.
Preprocessing
Now we are going to divide the data into training and testing, and then do the preprocessing in both datasets to perform the training of the models and their evaluation. We will use the years grouped too, resulting in 5 datasets for SP and more 5 for other states.
First, it is necessary to define the columns that will be used as features and the label. We will not use some columns of the datasets: UFRESID, because we already have the division between SP and other states in the two datasets.
It was chosen to keep the column IDADE, so we will not use the FAIXAETAR, as well as the column ECGRUP and not the column EC. Finally, the other columns contained in the list list_drop are possible labels, so they will not be used as features for machine learning models.
[ ]:
list_drop = ['UFRESID', 'FAIXAETAR', 'ULTICONS', 'ULTIDIAG', 'ULTITRAT',
'obito_geral', 'obito_cancer', 'vivo_ano1', 'vivo_ano3',
'ULTINFO', 'EC', 'HORMONIO']
# 'RECNENHUM', 'RECLOCAL', 'RECREGIO', 'REC01', 'REC02', 'REC03', 'RECDIST'
lb = 'vivo_ano5'
A function was created to perform the preprocessing, preprocessing, that uses the other functions created, get_train_test (divides the dataset into train and test sets), train_preprocessing (do the preprocessing of the train set) and test_preprocessing (do the preprocessing of the test set).
The process will be done 5 times for SP and other states, using the datasets with grouped years.
To see the complete function go to the functions section.
SP
[ ]:
X_trainSP_00_03, X_testSP_00_03, y_trainSP_00_03, y_testSP_00_03, feat_SP_00_03 = preprocessing(df_SP_ano5, list_drop, lb,
group_years=True,
first_year=2000,
last_year=2003,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (44789, 64), X_test = (14930, 64)
y_train = (44789,), y_test = (14930,)
[ ]:
X_trainSP_04_07, X_testSP_04_07, y_trainSP_04_07, y_testSP_04_07, feat_SP_04_07 = preprocessing(df_SP_ano5, list_drop, lb,
group_years=True,
first_year=2004,
last_year=2007,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (55804, 64), X_test = (18602, 64)
y_train = (55804,), y_test = (18602,)
[ ]:
X_trainSP_08_11, X_testSP_08_11, y_trainSP_08_11, y_testSP_08_11, feat_SP_08_11 = preprocessing(df_SP_ano5, list_drop, lb,
group_years=True,
first_year=2008,
last_year=2011,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (73620, 64), X_test = (24541, 64)
y_train = (73620,), y_test = (24541,)
[ ]:
X_trainSP_12_15, X_testSP_12_15, y_trainSP_12_15, y_testSP_12_15, feat_SP_12_15 = preprocessing(df_SP_ano5, list_drop, lb,
group_years=True,
first_year=2012,
last_year=2015,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (65896, 64), X_test = (21966, 64)
y_train = (65896,), y_test = (21966,)
Other states
[ ]:
X_trainOS_00_03, X_testOS_00_03, y_trainOS_00_03, y_testOS_00_03, feat_OS_00_03 = preprocessing(df_fora_ano5, list_drop, lb,
group_years=True,
first_year=2000,
last_year=2003,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (2588, 64), X_test = (863, 64)
y_train = (2588,), y_test = (863,)
[ ]:
X_trainOS_04_07, X_testOS_04_07, y_trainOS_04_07, y_testOS_04_07, feat_OS_04_07 = preprocessing(df_fora_ano5, list_drop, lb,
group_years=True,
first_year=2004,
last_year=2007,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (3396, 64), X_test = (1133, 64)
y_train = (3396,), y_test = (1133,)
[ ]:
X_trainOS_08_11, X_testOS_08_11, y_trainOS_08_11, y_testOS_08_11, feat_OS_08_11 = preprocessing(df_fora_ano5, list_drop, lb,
group_years=True,
first_year=2008,
last_year=2011,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (3926, 64), X_test = (1309, 64)
y_train = (3926,), y_test = (1309,)
[ ]:
X_trainOS_12_15, X_testOS_12_15, y_trainOS_12_15, y_testOS_12_15, feat_OS_12_15 = preprocessing(df_fora_ano5, list_drop, lb,
group_years=True,
first_year=2012,
last_year=2015,
random_state=seed,
balance_data=False,
encoder_type='LabelEncoder',
norm_name='StandardScaler')
X_train = (3814, 64), X_test = (1272, 64)
y_train = (3814,), y_test = (1272,)
Training and evaluation of the models
After dividing the data into training and testing, using the encoder and normalizing, the data is ready to be used by the machine learning models.
Random Forest
The first model is the Random Forest, the random_state will be used as a parameter, to obtain the same training values of the model every time it is runned.
The hyperparameter class_weight was used because the models have difficulty to learn the class with fewer examples.
SP
[ ]:
# SP - 2000 to 2003
rf_sp_00_03 = RandomForestClassifier(random_state=seed,
class_weight={0:1, 1:1.01},
criterion='entropy',
max_depth=10)
rf_sp_00_03.fit(X_trainSP_00_03, y_trainSP_00_03)
RandomForestClassifier(class_weight={0: 1, 1: 1.01}, criterion='entropy',
max_depth=10, random_state=10)
[ ]:
display_confusion_matrix(rf_sp_00_03, X_testSP_00_03, y_testSP_00_03)
precision recall f1-score support
0 0.803 0.790 0.796 7787
1 0.775 0.789 0.782 7143
accuracy 0.789 14930
macro avg 0.789 0.789 0.789 14930
weighted avg 0.790 0.789 0.789 14930
The confusion matrix obtained for the Random Forest, with SP data from 2000 to 2003, shows a good performance of the model, with 79% of accuracy.
[ ]:
show_tree(rf_sp_00_03, feat_SP_00_03, 2)
[ ]:
plot_roc_curve(rf_sp_00_03, X_trainSP_00_03, X_testSP_00_03, y_trainSP_00_03, y_testSP_00_03)
[ ]:
plot_feat_importances(rf_sp_00_03, feat_SP_00_03)
The four most important features in the model were
ECGRUP,TOPO,TOPOGRUP, andMETA01.
[ ]:
plot_shap_values(rf_sp_00_03, X_testSP_00_03, feat_SP_00_03)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# SP - 2004 to 2007
rf_sp_04_07 = RandomForestClassifier(random_state=seed,
class_weight={0:1.146, 1:1},
criterion='entropy',
max_depth=10)
rf_sp_04_07.fit(X_trainSP_04_07, y_trainSP_04_07)
RandomForestClassifier(class_weight={0: 1.146, 1: 1}, criterion='entropy',
max_depth=10, random_state=10)
[ ]:
display_confusion_matrix(rf_sp_04_07, X_testSP_04_07, y_testSP_04_07)
precision recall f1-score support
0 0.789 0.794 0.792 9125
1 0.801 0.795 0.798 9477
accuracy 0.795 18602
macro avg 0.795 0.795 0.795 18602
weighted avg 0.795 0.795 0.795 18602
The confusion matrix obtained for the Random Forest, with SP data from 2004 to 2007, shows a good performance of the model, with 79% of accuracy.
[ ]:
show_tree(rf_sp_04_07, feat_SP_04_07, 2)
[ ]:
plot_roc_curve(rf_sp_04_07, X_trainSP_04_07, X_testSP_04_07, y_trainSP_04_07, y_testSP_04_07)
[ ]:
plot_feat_importances(rf_sp_04_07, feat_SP_04_07)
The four most important features in the model were
ECGRUP,TOPOGRUP,TOPOandMETA01.
[ ]:
plot_shap_values(rf_sp_04_07, X_testSP_04_07, feat_SP_04_07)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# SP - 2008 to 2011
rf_sp_08_11 = RandomForestClassifier(random_state=seed,
class_weight={0:1.26, 1:1},
criterion='entropy',
max_depth=10)
rf_sp_08_11.fit(X_trainSP_08_11, y_trainSP_08_11)
RandomForestClassifier(class_weight={0: 1.26, 1: 1}, criterion='entropy',
max_depth=10, random_state=10)
[ ]:
display_confusion_matrix(rf_sp_08_11, X_testSP_08_11, y_testSP_08_11)
precision recall f1-score support
0 0.792 0.807 0.800 11680
1 0.822 0.808 0.815 12861
accuracy 0.808 24541
macro avg 0.807 0.808 0.807 24541
weighted avg 0.808 0.808 0.808 24541
The confusion matrix obtained for the Random Forest, with SP data from 2008 to 2011, shows a good performance of the model, with 81% of accuracy.
[ ]:
show_tree(rf_sp_08_11, feat_SP_08_11, 2)
[ ]:
plot_roc_curve(rf_sp_08_11, X_trainSP_08_11, X_testSP_08_11, y_trainSP_08_11, y_testSP_08_11)
[ ]:
plot_feat_importances(rf_sp_08_11, feat_SP_08_11)
The four most important features in the model were
ECGRUP,TOPO,META01andM.
[ ]:
plot_shap_values(rf_sp_08_11, X_testSP_08_11, feat_SP_08_11)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# SP - 2012 to 2015
rf_sp_12_15 = RandomForestClassifier(random_state=seed,
class_weight={0:1, 1:1.18},
criterion='entropy',
max_depth=10)
rf_sp_12_15.fit(X_trainSP_12_15, y_trainSP_12_15)
RandomForestClassifier(class_weight={0: 1, 1: 1.18}, criterion='entropy',
max_depth=10, random_state=10)
[ ]:
display_confusion_matrix(rf_sp_12_15, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.854 0.815 0.834 12466
1 0.771 0.816 0.793 9500
accuracy 0.816 21966
macro avg 0.812 0.816 0.814 21966
weighted avg 0.818 0.816 0.816 21966
The confusion matrix obtained for the Random Forest, with SP data from 2012 to 2015, shows a good performance of the model with 82% of accuracy.
[ ]:
show_tree(rf_sp_12_15, feat_SP_12_15, 2)
[ ]:
plot_roc_curve(rf_sp_12_15, X_trainSP_12_15, X_testSP_12_15, y_trainSP_12_15, y_testSP_12_15)
[ ]:
plot_feat_importances(rf_sp_12_15, feat_SP_12_15)
The four most important features in the model were
ECGRUP,M,TOPOandMETA01.
[ ]:
plot_shap_values(rf_sp_12_15, X_testSP_12_15, feat_SP_12_15)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
Other states
[ ]:
# Other states - 2000 to 2003
rf_fora_00_03 = RandomForestClassifier(random_state=seed,
class_weight={0:1.34, 1:1},
criterion='entropy',
max_depth=6)
rf_fora_00_03.fit(X_trainOS_00_03, y_trainOS_00_03)
RandomForestClassifier(class_weight={0: 1.34, 1: 1}, criterion='entropy',
max_depth=6, random_state=10)
[ ]:
display_confusion_matrix(rf_fora_00_03, X_testOS_00_03, y_testOS_00_03)
precision recall f1-score support
0 0.769 0.778 0.773 419
1 0.788 0.779 0.784 444
accuracy 0.779 863
macro avg 0.779 0.779 0.779 863
weighted avg 0.779 0.779 0.779 863
The confusion matrix obtained for the Random Forest, with other states data from 2000 to 2003, also shows a good performance of the model, and we have a balanced main diagonal with 78% of accuracy.
[ ]:
show_tree(rf_fora_00_03, feat_OS_00_03, 2)
[ ]:
plot_roc_curve(rf_fora_00_03, X_trainOS_00_03, X_testOS_00_03, y_trainOS_00_03, y_testOS_00_03)
[ ]:
plot_feat_importances(rf_fora_00_03, feat_OS_00_03)
The four most important features in the model were
ECGRUP,TOPO,TOPOGRUPandMETA01.
[ ]:
plot_shap_values(rf_fora_00_03, X_testOS_00_03, feat_OS_00_03)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states - 2004 to 2007
rf_fora_04_07 = RandomForestClassifier(random_state=seed,
class_weight={0:1.4505, 1:1},
criterion='entropy',
max_depth=6)
rf_fora_04_07.fit(X_trainOS_04_07, y_trainOS_04_07)
RandomForestClassifier(class_weight={0: 1.4505, 1: 1}, criterion='entropy',
max_depth=6, random_state=10)
[ ]:
display_confusion_matrix(rf_fora_04_07, X_testOS_04_07, y_testOS_04_07)
precision recall f1-score support
0 0.777 0.799 0.788 528
1 0.820 0.800 0.810 605
accuracy 0.800 1133
macro avg 0.799 0.800 0.799 1133
weighted avg 0.800 0.800 0.800 1133
The confusion matrix obtained for the Random Forest, with other states data from 2004 to 2007, also shows a good performance of the model, with 80% of accuracy.
[ ]:
show_tree(rf_fora_04_07, feat_OS_04_07, 2)
[ ]:
plot_roc_curve(rf_fora_04_07, X_trainOS_04_07, X_testOS_04_07, y_trainOS_04_07, y_testOS_04_07)
[ ]:
plot_feat_importances(rf_fora_04_07, feat_OS_04_07)
The four most important features in the model were
ECGRUP,T,META01andM.
[ ]:
plot_shap_values(rf_fora_04_07, X_testOS_04_07, feat_OS_04_07)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states - 2008 to 2011
rf_fora_08_11 = RandomForestClassifier(random_state=seed,
class_weight={0:1.356, 1:1},
criterion='entropy',
max_depth=6)
rf_fora_08_11.fit(X_trainOS_08_11, y_trainOS_08_11)
RandomForestClassifier(class_weight={0: 1.356, 1: 1}, criterion='entropy',
max_depth=6, random_state=10)
[ ]:
display_confusion_matrix(rf_fora_08_11, X_testOS_08_11, y_testOS_08_11)
precision recall f1-score support
0 0.784 0.810 0.796 604
1 0.832 0.809 0.820 705
accuracy 0.809 1309
macro avg 0.808 0.809 0.808 1309
weighted avg 0.810 0.809 0.809 1309
The confusion matrix obtained for the Random Forest, with other states data from 2008 to 2011, also shows a good performance of the model, presenting 81% of accuracy.
[ ]:
show_tree(rf_fora_08_11, feat_OS_08_11, 2)
[ ]:
plot_roc_curve(rf_fora_08_11, X_trainOS_08_11, X_testOS_08_11, y_trainOS_08_11, y_testOS_08_11)
[ ]:
plot_feat_importances(rf_fora_08_11, feat_OS_08_11)
The four most important features in the model were
ECGRUP,META01,MandTOPO.
[ ]:
plot_shap_values(rf_fora_08_11, X_testOS_08_11, feat_OS_08_11)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states - 2012 to 2015
rf_fora_12_15 = RandomForestClassifier(random_state=seed,
class_weight={0:1.14, 1:1},
criterion='entropy',
max_depth=7)
rf_fora_12_15.fit(X_trainOS_12_15, y_trainOS_12_15)
RandomForestClassifier(class_weight={0: 1.14, 1: 1}, criterion='entropy',
max_depth=7, random_state=10)
[ ]:
display_confusion_matrix(rf_fora_12_15, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.839 0.827 0.833 664
1 0.814 0.827 0.821 608
accuracy 0.827 1272
macro avg 0.827 0.827 0.827 1272
weighted avg 0.827 0.827 0.827 1272
The confusion matrix obtained for the Random Forest, with other states data from 2012 to 2015, also shows a good performance of the model, presenting 83% of accuracy.
[ ]:
show_tree(rf_fora_12_15, feat_OS_12_15, 2)
[ ]:
plot_roc_curve(rf_fora_12_15, X_trainOS_12_15, X_testOS_12_15, y_trainOS_12_15, y_testOS_12_15)
[ ]:
plot_feat_importances(rf_fora_12_15, feat_OS_12_15)
The four most important features in the model were
ECGRUP,META01,TOPOandM.
[ ]:
plot_shap_values(rf_fora_12_15, X_testOS_12_15, feat_OS_12_15)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
XGBoost
The training of the XGBoost models follows the same pattern with random_state. The hyperparameter scale_pos_weight was also used in some trainings, in order to obtain a balanced main diagonal in the confusion matrix.
The hyperparameter max_depth was chosen as 10 because the default value for this hyperparameter is 3, a low value for the amount of data we have.
SP
[ ]:
# SP - 2000 to 2003
xgb_sp_00_03 = XGBClassifier(max_depth=8,
random_state=seed,
scale_pos_weight=1.107)
xgb_sp_00_03.fit(X_trainSP_00_03, y_trainSP_00_03)
XGBClassifier(max_depth=8, random_state=10, scale_pos_weight=1.107)
[ ]:
display_confusion_matrix(xgb_sp_00_03, X_testSP_00_03, y_testSP_00_03)
precision recall f1-score support
0 0.820 0.806 0.813 7787
1 0.793 0.807 0.800 7143
accuracy 0.807 14930
macro avg 0.806 0.807 0.806 14930
weighted avg 0.807 0.807 0.807 14930
The confusion matrix obtained for the XGBoost, with SP data from 2000 to 2003, shows a good performance of the model, here with 81% of accuracy.
[ ]:
plot_roc_curve(xgb_sp_00_03, X_trainSP_00_03, X_testSP_00_03, y_trainSP_00_03, y_testSP_00_03)
[ ]:
plot_feat_importances(xgb_sp_00_03, feat_SP_00_03)
Here we noticed that the most used feature was
ECGRUP, with a lot advantage over the others. Following we haveM,TRATAMENTOandCIRURGIA.
[ ]:
plot_shap_values(xgb_sp_00_03, X_testSP_00_03, feat_SP_00_03)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# SP - 2004 to 2007
xgb_sp_04_07 = XGBClassifier(max_depth=8,
random_state=seed,
scale_pos_weight=0.9605)
xgb_sp_04_07.fit(X_trainSP_04_07, y_trainSP_04_07)
XGBClassifier(max_depth=8, random_state=10, scale_pos_weight=0.9605)
[ ]:
display_confusion_matrix(xgb_sp_04_07, X_testSP_04_07, y_testSP_04_07)
precision recall f1-score support
0 0.808 0.814 0.811 9125
1 0.819 0.814 0.817 9477
accuracy 0.814 18602
macro avg 0.814 0.814 0.814 18602
weighted avg 0.814 0.814 0.814 18602
The confusion matrix obtained for the XGBoost, with SP data from 2004 to 2007, shows a good performance of the model, with 81% of accuracy.
[ ]:
plot_roc_curve(xgb_sp_04_07, X_trainSP_04_07, X_testSP_04_07, y_trainSP_04_07, y_testSP_04_07)
[ ]:
plot_feat_importances(xgb_sp_04_07, feat_SP_04_07)
Here we noticed that the most used feature was
ECGRUP, with a good advantage over the others. Following we haveMETA01,CIRURGIAandTRATAMENTO.
[ ]:
plot_shap_values(xgb_sp_04_07, X_testSP_04_07, feat_SP_04_07)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# SP - 2008 to 2011
xgb_sp_08_11 = XGBClassifier(max_depth=8,
scale_pos_weight=0.795,
random_state=seed)
xgb_sp_08_11.fit(X_trainSP_08_11, y_trainSP_08_11)
XGBClassifier(max_depth=8, random_state=10, scale_pos_weight=0.795)
[ ]:
display_confusion_matrix(xgb_sp_08_11, X_testSP_08_11, y_testSP_08_11)
precision recall f1-score support
0 0.811 0.826 0.818 11680
1 0.839 0.825 0.832 12861
accuracy 0.825 24541
macro avg 0.825 0.825 0.825 24541
weighted avg 0.826 0.825 0.825 24541
The confusion matrix obtained for the XGBoost, with SP data from 2008 to 2011, shows a good performance of the model, with 82% of accuracy.
[ ]:
plot_roc_curve(xgb_sp_08_11, X_trainSP_08_11, X_testSP_08_11, y_trainSP_08_11, y_testSP_08_11)
[ ]:
plot_feat_importances(xgb_sp_08_11, feat_SP_08_11)
Here we noticed that the most used feature was
ECGRUP, with a good advantage over the others. Following we haveCIRURGIA,REC01andMETA01.
[ ]:
plot_shap_values(xgb_sp_08_11, X_testSP_08_11, feat_SP_08_11)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# SP - 2012 to 2015
xgb_sp_12_15 = XGBClassifier(max_depth=8,
random_state=seed,
scale_pos_weight=1.25)
xgb_sp_12_15.fit(X_trainSP_12_15, y_trainSP_12_15)
XGBClassifier(max_depth=8, random_state=10, scale_pos_weight=1.25)
[ ]:
display_confusion_matrix(xgb_sp_12_15, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.864 0.829 0.846 12466
1 0.786 0.828 0.807 9500
accuracy 0.828 21966
macro avg 0.825 0.828 0.826 21966
weighted avg 0.830 0.828 0.829 21966
The confusion matrix obtained for the XGBoost, with SP data from 2012 to 2015, shows a good performance of the model, with 83% of accuracy.
[ ]:
plot_roc_curve(xgb_sp_12_15, X_trainSP_12_15, X_testSP_12_15, y_trainSP_12_15, y_testSP_12_15)
[ ]:
plot_feat_importances(xgb_sp_12_15, feat_SP_12_15)
Here we noticed that the most used feature was
ECGRUP, with a good advantage. Following we haveCIRURGIA,REC01andTOPO.
[ ]:
plot_shap_values(xgb_sp_12_15, X_testSP_12_15, feat_SP_12_15)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
Other states
[ ]:
# Other states - 2000 to 2003
xgb_fora_00_03 = XGBClassifier(max_depth=4,
scale_pos_weight=0.792,
random_state=seed)
xgb_fora_00_03.fit(X_trainOS_00_03, y_trainOS_00_03)
XGBClassifier(max_depth=4, random_state=10, scale_pos_weight=0.792)
[ ]:
display_confusion_matrix(xgb_fora_00_03, X_testOS_00_03, y_testOS_00_03)
precision recall f1-score support
0 0.788 0.797 0.792 419
1 0.806 0.797 0.802 444
accuracy 0.797 863
macro avg 0.797 0.797 0.797 863
weighted avg 0.797 0.797 0.797 863
The confusion matrix obtained for the XGBoost, with other states data from 2000 to 2003, also shows a good performance of the model, with 80% of accuracy.
[ ]:
plot_roc_curve(xgb_fora_00_03, X_trainOS_00_03, X_testOS_00_03, y_trainOS_00_03, y_testOS_00_03)
[ ]:
plot_feat_importances(xgb_fora_00_03, feat_OS_00_03)
Again we noticed that the most used feature was
ECGRUP, with a good advantage. The following most important features wereM,CIRURGIAandTOPO.
[ ]:
plot_shap_values(xgb_fora_00_03, X_testOS_00_03, feat_OS_00_03)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states - 2004 to 2007
xgb_fora_04_07 = XGBClassifier(max_depth=4,
scale_pos_weight=0.8,
random_state=seed)
xgb_fora_04_07.fit(X_trainOS_04_07, y_trainOS_04_07)
XGBClassifier(max_depth=4, random_state=10, scale_pos_weight=0.8)
[ ]:
display_confusion_matrix(xgb_fora_04_07, X_testOS_04_07, y_testOS_04_07)
precision recall f1-score support
0 0.811 0.830 0.820 528
1 0.848 0.831 0.840 605
accuracy 0.831 1133
macro avg 0.830 0.830 0.830 1133
weighted avg 0.831 0.831 0.831 1133
The confusion matrix obtained for the XGBoost, with other states data from 2004 to 2007, also shows a good performance of the model with 83% of accuracy.
[ ]:
plot_roc_curve(xgb_fora_04_07, X_trainOS_04_07, X_testOS_04_07, y_trainOS_04_07, y_testOS_04_07)
[ ]:
plot_feat_importances(xgb_fora_04_07, feat_OS_04_07)
Again we noticed that the most used feature was
ECGRUP, with a good advantage. The following most important features wereT,MandMETA01.
[ ]:
plot_shap_values(xgb_fora_04_07, X_testOS_04_07, feat_OS_04_07)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states - 2008 to 2011
xgb_fora_08_11 = XGBClassifier(max_depth=5,
scale_pos_weight=0.87,
random_state=seed)
xgb_fora_08_11.fit(X_trainOS_08_11, y_trainOS_08_11)
XGBClassifier(max_depth=5, random_state=10, scale_pos_weight=0.87)
[ ]:
display_confusion_matrix(xgb_fora_08_11, X_testOS_08_11, y_testOS_08_11)
precision recall f1-score support
0 0.818 0.839 0.828 604
1 0.859 0.840 0.849 705
accuracy 0.840 1309
macro avg 0.838 0.840 0.839 1309
weighted avg 0.840 0.840 0.840 1309
The confusion matrix obtained for the XGBoost, with other states data from 2008 to 2011, also shows a good performance of the model with 84% of accuracy.
[ ]:
plot_roc_curve(xgb_fora_08_11, X_trainOS_08_11, X_testOS_08_11, y_trainOS_08_11, y_testOS_08_11)
[ ]:
plot_feat_importances(xgb_fora_08_11, feat_OS_08_11)
Again we noticed that the most used feature was
ECGRUP, but not with a lot of advantage. The following most important features wereM,TRATHOSPandN.
[ ]:
plot_shap_values(xgb_fora_08_11, X_testOS_08_11, feat_OS_08_11)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
[ ]:
# Other states - 2012 to 2015
xgb_fora_12_15 = XGBClassifier(max_depth=5,
scale_pos_weight=0.88,
random_state=seed)
xgb_fora_12_15.fit(X_trainOS_12_15, y_trainOS_12_15)
XGBClassifier(max_depth=5, random_state=10, scale_pos_weight=0.88)
[ ]:
display_confusion_matrix(xgb_fora_12_15, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.846 0.834 0.840 664
1 0.822 0.834 0.828 608
accuracy 0.834 1272
macro avg 0.834 0.834 0.834 1272
weighted avg 0.834 0.834 0.834 1272
The confusion matrix obtained for the XGBoost, with other states data from 2012 to 2015, also shows a good performance of the model with 83% of accuracy.
[ ]:
plot_roc_curve(xgb_fora_12_15, X_trainOS_12_15, X_testOS_12_15, y_trainOS_12_15, y_testOS_12_15)
[ ]:
plot_feat_importances(xgb_fora_12_15, feat_OS_12_15)
The four most important features were
ECGRUP,REC01,CIRURGIAandTRATHOSP.
[ ]:
plot_shap_values(xgb_fora_12_15, X_testOS_12_15, feat_OS_12_15)
Note that larger values of the ECGRUP column, shown in pink, have more influence for the model’s prediction to be class 0, smaller values have greater weight for the prediction to be class 1. This behavior was expected, because the higher the clinical stage, worse is the stage of cancer.
The other columns shown follow the same logic.
Testing models with data from other years
We will use test data from the following years in the trained models for each set of years grouped together.
Random Forest SP for years 2000 to 2003
[ ]:
display_confusion_matrix(rf_sp_00_03, X_testSP_04_07, y_testSP_04_07)
precision recall f1-score support
0 0.792 0.775 0.783 9125
1 0.787 0.804 0.795 9477
accuracy 0.789 18602
macro avg 0.790 0.789 0.789 18602
weighted avg 0.789 0.789 0.789 18602
[ ]:
display_confusion_matrix(rf_sp_00_03, X_testSP_08_11, y_testSP_08_11)
precision recall f1-score support
0 0.779 0.771 0.775 11680
1 0.794 0.801 0.797 12861
accuracy 0.787 24541
macro avg 0.786 0.786 0.786 24541
weighted avg 0.787 0.787 0.787 24541
[ ]:
display_confusion_matrix(rf_sp_00_03, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.831 0.793 0.812 12466
1 0.744 0.789 0.766 9500
accuracy 0.791 21966
macro avg 0.788 0.791 0.789 21966
weighted avg 0.793 0.791 0.792 21966
XGBoost SP for years 2000 to 2003
[ ]:
display_confusion_matrix(xgb_sp_00_03, X_testSP_04_07, y_testSP_04_07)
precision recall f1-score support
0 0.828 0.754 0.789 9125
1 0.782 0.849 0.814 9477
accuracy 0.802 18602
macro avg 0.805 0.802 0.802 18602
weighted avg 0.805 0.802 0.802 18602
[ ]:
display_confusion_matrix(xgb_sp_00_03, X_testSP_08_11, y_testSP_08_11)
precision recall f1-score support
0 0.812 0.742 0.776 11680
1 0.783 0.844 0.812 12861
accuracy 0.796 24541
macro avg 0.798 0.793 0.794 24541
weighted avg 0.797 0.796 0.795 24541
[ ]:
display_confusion_matrix(xgb_sp_00_03, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.849 0.766 0.805 12466
1 0.727 0.821 0.771 9500
accuracy 0.790 21966
macro avg 0.788 0.793 0.788 21966
weighted avg 0.796 0.790 0.790 21966
Random Forest SP for years 2004 to 2007
[ ]:
display_confusion_matrix(rf_sp_04_07, X_testSP_08_11, y_testSP_08_11)
precision recall f1-score support
0 0.783 0.788 0.785 11680
1 0.806 0.801 0.804 12861
accuracy 0.795 24541
macro avg 0.794 0.795 0.794 24541
weighted avg 0.795 0.795 0.795 24541
[ ]:
display_confusion_matrix(rf_sp_04_07, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.838 0.785 0.810 12466
1 0.739 0.800 0.768 9500
accuracy 0.791 21966
macro avg 0.788 0.792 0.789 21966
weighted avg 0.795 0.791 0.792 21966
XGBoost SP for years 2004 to 2007
[ ]:
display_confusion_matrix(xgb_sp_04_07, X_testSP_08_11, y_testSP_08_11)
precision recall f1-score support
0 0.818 0.776 0.797 11680
1 0.806 0.843 0.824 12861
accuracy 0.811 24541
macro avg 0.812 0.810 0.810 24541
weighted avg 0.812 0.811 0.811 24541
[ ]:
display_confusion_matrix(xgb_sp_04_07, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.858 0.748 0.799 12466
1 0.717 0.838 0.772 9500
accuracy 0.787 21966
macro avg 0.787 0.793 0.786 21966
weighted avg 0.797 0.787 0.788 21966
Random Forest SP for years 2008 to 2011
[ ]:
display_confusion_matrix(rf_sp_08_11, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.851 0.780 0.814 12466
1 0.740 0.821 0.778 9500
accuracy 0.798 21966
macro avg 0.795 0.800 0.796 21966
weighted avg 0.803 0.798 0.798 21966
XGBoost SP for years 2008 to 2011
[ ]:
display_confusion_matrix(xgb_sp_08_11, X_testSP_12_15, y_testSP_12_15)
precision recall f1-score support
0 0.865 0.733 0.794 12466
1 0.708 0.850 0.773 9500
accuracy 0.784 21966
macro avg 0.787 0.792 0.783 21966
weighted avg 0.797 0.784 0.785 21966
Random Forest Other states for years 2000 to 2003
[ ]:
display_confusion_matrix(rf_fora_00_03, X_testOS_04_07, y_testOS_04_07)
precision recall f1-score support
0 0.775 0.814 0.794 528
1 0.830 0.793 0.811 605
accuracy 0.803 1133
macro avg 0.803 0.804 0.803 1133
weighted avg 0.805 0.803 0.803 1133
[ ]:
display_confusion_matrix(rf_fora_00_03, X_testOS_08_11, y_testOS_08_11)
precision recall f1-score support
0 0.738 0.848 0.789 604
1 0.850 0.742 0.792 705
accuracy 0.791 1309
macro avg 0.794 0.795 0.791 1309
weighted avg 0.798 0.791 0.791 1309
[ ]:
display_confusion_matrix(rf_fora_00_03, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.768 0.840 0.802 664
1 0.806 0.722 0.761 608
accuracy 0.784 1272
macro avg 0.787 0.781 0.782 1272
weighted avg 0.786 0.784 0.783 1272
XGBoost Other states for years 2000 to 2003
[ ]:
display_confusion_matrix(xgb_fora_00_03, X_testOS_04_07, y_testOS_04_07)
precision recall f1-score support
0 0.794 0.820 0.807 528
1 0.838 0.815 0.826 605
accuracy 0.817 1133
macro avg 0.816 0.817 0.817 1133
weighted avg 0.818 0.817 0.817 1133
[ ]:
display_confusion_matrix(xgb_fora_00_03, X_testOS_08_11, y_testOS_08_11)
precision recall f1-score support
0 0.779 0.821 0.799 604
1 0.839 0.800 0.819 705
accuracy 0.810 1309
macro avg 0.809 0.811 0.809 1309
weighted avg 0.811 0.810 0.810 1309
[ ]:
display_confusion_matrix(xgb_fora_00_03, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.786 0.837 0.811 664
1 0.809 0.752 0.779 608
accuracy 0.796 1272
macro avg 0.798 0.794 0.795 1272
weighted avg 0.797 0.796 0.796 1272
Random Forest Other states for years 2004 to 2007
[ ]:
display_confusion_matrix(rf_fora_04_07, X_testOS_08_11, y_testOS_08_11)
precision recall f1-score support
0 0.773 0.853 0.811 604
1 0.862 0.786 0.822 705
accuracy 0.817 1309
macro avg 0.817 0.819 0.816 1309
weighted avg 0.821 0.817 0.817 1309
[ ]:
display_confusion_matrix(rf_fora_04_07, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.771 0.840 0.804 664
1 0.807 0.727 0.765 608
accuracy 0.786 1272
macro avg 0.789 0.784 0.784 1272
weighted avg 0.788 0.786 0.785 1272
XGBoost Other states for years 2004 to 2007
[ ]:
display_confusion_matrix(xgb_fora_04_07, X_testOS_08_11, y_testOS_08_11)
precision recall f1-score support
0 0.789 0.856 0.821 604
1 0.867 0.804 0.834 705
accuracy 0.828 1309
macro avg 0.828 0.830 0.828 1309
weighted avg 0.831 0.828 0.828 1309
[ ]:
display_confusion_matrix(xgb_fora_04_07, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.796 0.854 0.824 664
1 0.827 0.762 0.793 608
accuracy 0.810 1272
macro avg 0.812 0.808 0.808 1272
weighted avg 0.811 0.810 0.809 1272
Random Forest Other states for years 2008 to 2011
[ ]:
display_confusion_matrix(rf_fora_08_11, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.818 0.807 0.813 664
1 0.793 0.804 0.798 608
accuracy 0.806 1272
macro avg 0.805 0.806 0.806 1272
weighted avg 0.806 0.806 0.806 1272
XGBoost Other states for years 2008 to 2011
[ ]:
display_confusion_matrix(xgb_fora_08_11, X_testOS_12_15, y_testOS_12_15)
precision recall f1-score support
0 0.838 0.807 0.822 664
1 0.797 0.829 0.813 608
accuracy 0.818 1272
macro avg 0.817 0.818 0.817 1272
weighted avg 0.818 0.818 0.818 1272
